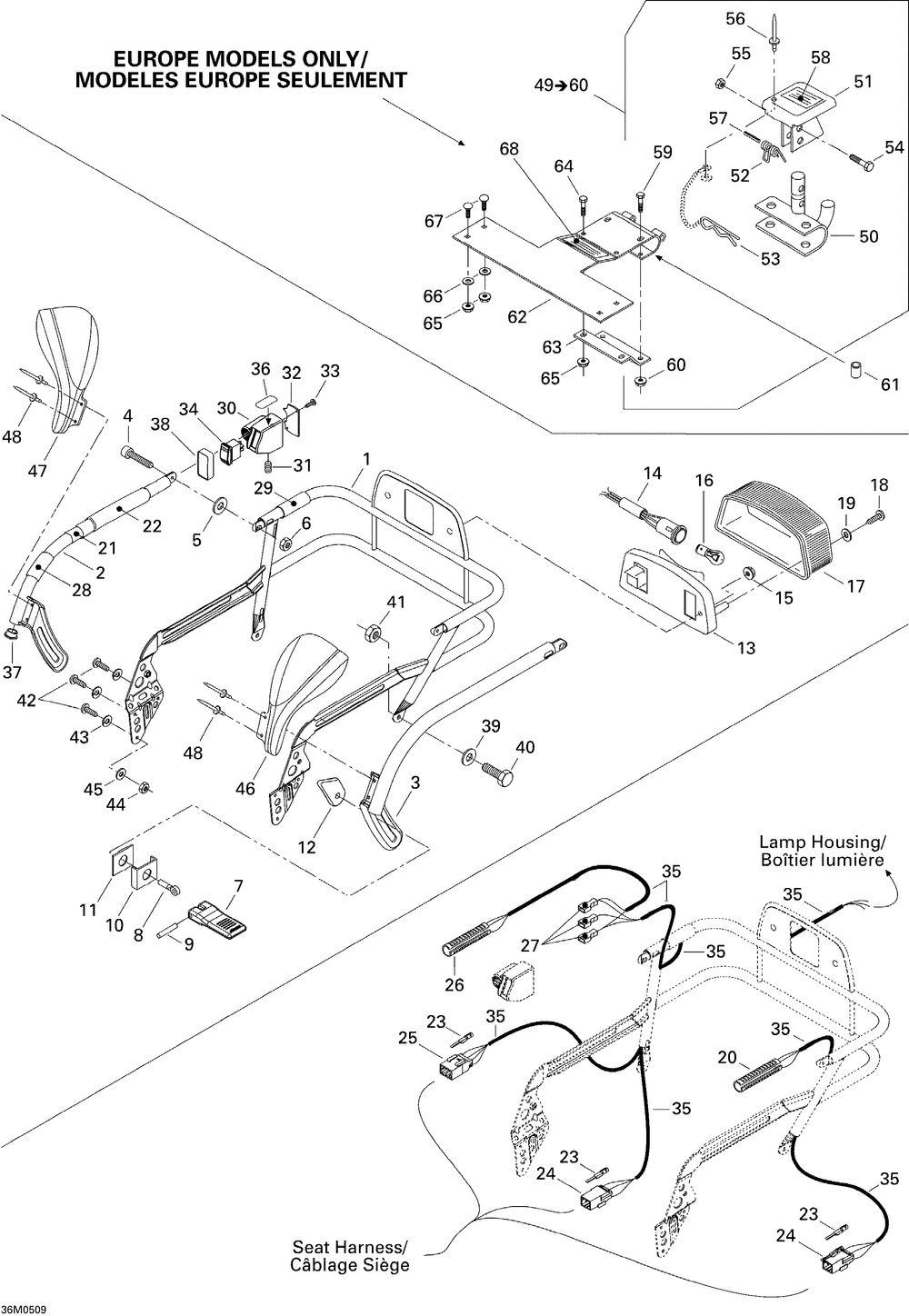

09- Luggage Rack

SKI-DOO Legend V-1000 Legend V-1000 09- Luggage Rack

№	Наименование	Кол-во
4	SOCKET HEAD SCREW M6 X 16 (10.000 per pack)	2
5	FLAT WASHER 6 MM (10.000 per pack)	2
6	Elastic Stop Nut M6	2
7	LOCK LEVER	2
8	EYE BOLT	2
9	TIGE *PIN	2
11	OUTER SPACER	2
12	SPACER BLOCK	2
13	LAMP HOUSING	1
15	FLANGED ELASTIC NUT M5 (4.000 per pack)	2
16	BULB (10.000 per pack)	1
17	LENS	1
18	PHILLIPS TAPPING SCREW M3.9 X 25 (10.000 per pack)	2
19	WASHER (10.000 per pack)	2
21	REFLECTIVE SHEET	2
22	LH GRIP 370 MM	1
23	MALE TERMINAL (10.000 per pack)	10
24	MALE HOUSING 3 CIRCUITS (5.000 per pack)	2
25	MALE TERMINAL HOUSING 4 CIRCUITS	1
27	FEMALE TERMINAL (20.000 per pack)	3
28	LH GRIP 370 MM	1
29	LH GRIP 370 MM	1
30	SWITCH HOUSING	1
31	PRESSURE SCREW M8 X 8 (10.000 per pack)	1
33	SCREW-THREAD CUT.PH.PAN TYPE25 (10.000 per pack)	2
35	Vinyl Tubing, Low Temperature (3.000 per pack)	0
36	HEAT GRIP DECAL	1
37	CAP BLACK	2
39	Flat Washer 8 mm	2
40	HEX. SCREW M8 X 20 (10.000 per pack)	2
41	Hex. Flanged Elastic Nut M8	2
42	HEX. FLANGED SCREW M6 X 16 (10.000 per pack)	6
43	Lock Washer Helical M6	6
45	FLAT WASHER (50.000 per pack)	2
46	RH PROTECTOR	1
47	LH PROTECTOR	1
48	POP RIVET 3/16tahos_ (25.000 per pack)	4
49	HITCH ASS Y KIT Includes 49 to 60 / Europe	1
52	SPRING Europe	1
53	GOUP.SURETE *PIN-HAIR (5.000 per pack)	1
54	HEX. SCREW M6 X 30 (10.000 per pack)	1
56	POP RIVET 5/32" BLACK Europe (10.000 per pack)	1
57	SPRING PIN M3 X 24 Europe	1
58	SECURITY LABEL HITCH	1
59	HEX. CAP SCREW M6 X 50 (10.000 per pack)	2
60	Hex. Flanged Elastic Nut M6	2
61	SPACER Europe	2
64	HEX. SCREW M6 X 20 (10.000 per pack)	2
66	FLAT WASHER (10.000 per pack)	4
67	CARRIAGE BOLT M6 X 20 Europe (10.000 per pack)	4
