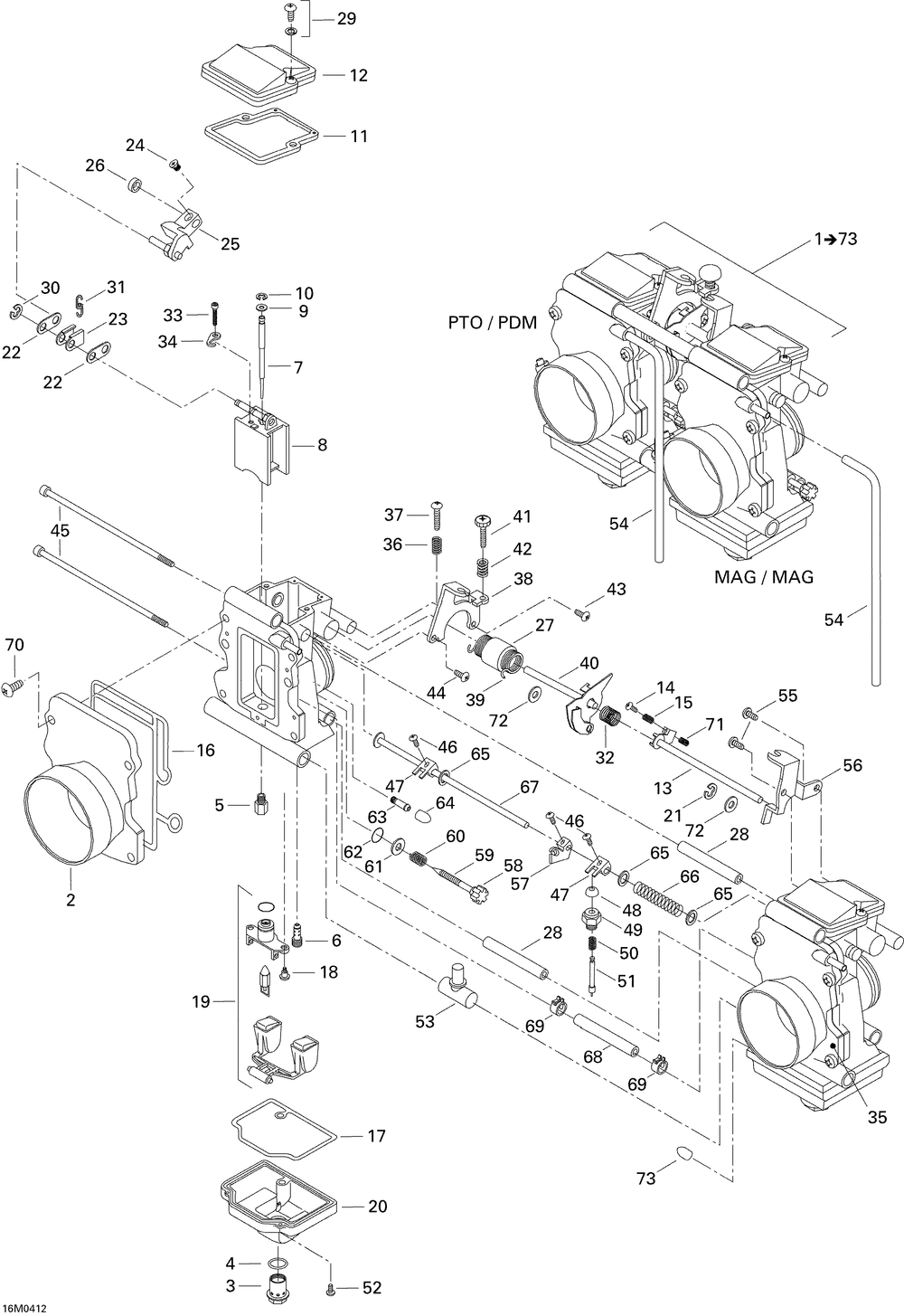

02- Carburetor (800 HO W-o DPM)

№	Наименование	Кол-во
3	DRAIN SCREW	2
4	O-RING	2
5	MAIN JET 440	2
6	PILOT JET 17.5 (10.000 per pack)	1
7	NEEDLE J8-9DGI13-58	2
8	VALVE PISTON 2.0	2
9	JOINT TAMPON *PACKING (10.000 per pack)	2
10	E-RING (5.000 per pack)	0
11	JOINT *GASKET	2
12	COVER	2
13	THROTTLE SHAFT	1
14	VIS *SCREW	1
15	ADJUSTMENT SPRING	1
16	O-RING	2
17	O-RING (2.000 per pack)	2
18	VIS *SCREW	4
19	FLOAT	2
20	BODY FLOAT ASS Y	2
21	E-RING	1
22	PLAQUE *PLATE	4
23	HOLDER	2
24	VIS *SCREW	2
25	LEVER	2
26	RING	2
27	RING	1
28	RING	2
29	VIS *SCREW	4
30	E-RING	2
31	SPRING	2
32	SPRING	1
33	VIS *SCREW	2
34	PLAQUE *PLATE	2
36	SPRING	1
37	VIS *SCREW	1
38	BRACKET PTO	1
39	SPRING	1
40	THROTTLE SHAFT	1
41	ADJUSTMENT SCREW	1
42	SPRING	1
43	VIS *SCREW	1
44	VIS *SCREW	1
45	VIS *SCREW	2
46	VIS *SCREW	3
47	LEVER	2
48	CAP	2
49	GUIDE HOLDER	2
50	SPRING	2
51	PLUNGER ASS Y	2
52	VIS *SCREW (10.000 per pack)	2
53	NIPPLE	1
54	DURITE *HOSE	2
55	VIS *SCREW	2
57	STARTER LEVER	1
58	CAP	2
59	ADJUSTER	2
60	SPRING	2
61	RONDELLE *WASHER	2
62	PACKING	2
63	NIPPLE	2
64	CAP	2
65	PACKING	3
66	SPRING	1
67	AXE *SHAFT	1
68	DURITE *HOSE	1
69	CLIP	2
70	VIS *SCREW	8
71	SPRING	1
72	JOINT TAMPON *PACKING	2
73	CAPUCHON OBTUR.*CAP-CLOSURE	2
