SKI-DOO Skandic 550F SKANDIC 550F 09- Hood SKANDIC - 550F

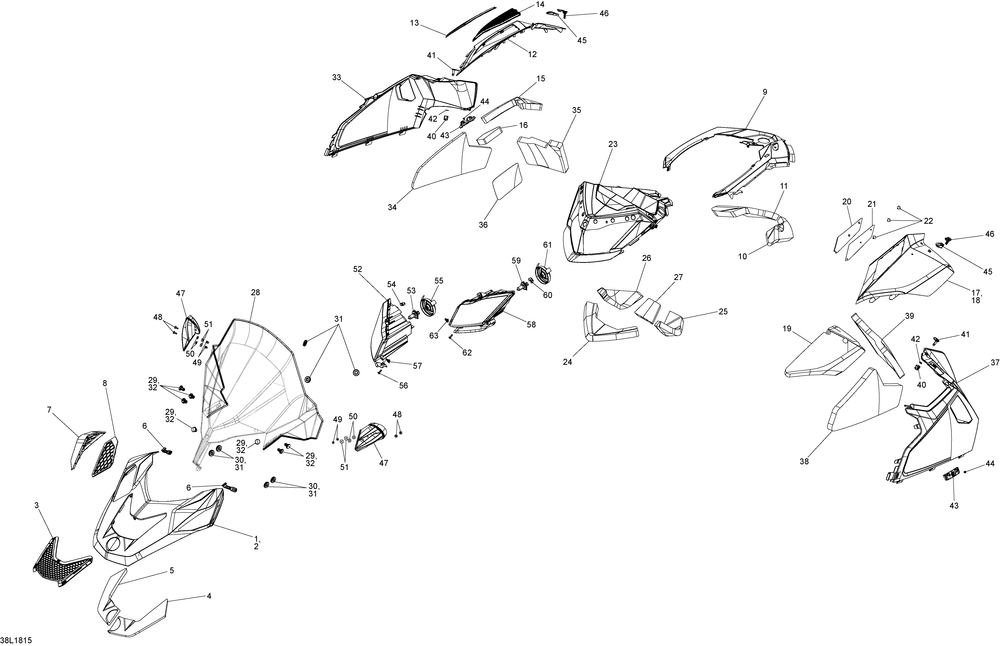

09- Hood SKANDIC - 550F
№ Наименование Примечание Кол-во
1 YELLOW HOOD 1
1 HOOD Model-550F 1
2 YELLOW HOOD 1
3 HOOD GRILL 1
4 INSULATOR 1
5 INSULATOR 1
6 LATCH PANNEL 2
7 INTAKE GRILL Model-550F 1
8 INTAKE GRILL Model-550F 1
9 BLACK CONSOLE 1
10 INSULATOR 1
11 INSULATOR 1
12 YELLOW SIDE ACCESS PANEL RH 1
12 SIDE ACCESS PANEL-R.H. 1
13 RH ACCESS PANEL GRILL 1
14 RH LOWER ACCES GRILL 1
15 INSULATOR 1
16 INSULATOR 1
18 YELLOW SIDE ACCESS PANEL LH 1
18 SIDE ACCESS PANEL LH 1
19 INSULATOR 1
20 INSULATOR Model-1200 4-TEC 1
21 GRILL PLATE Model-1200 4-TEC 1
22 DART GS Black A19N Model (10.000 per pack) 3
23 GAUGE SUPPORT Model-550F 1
24 INSULATOR 1
25 INSULATOR 1
26 INSULATOR 1
27 INSULATOR 1
28 WINDSHIELD ASS Y Includes 26 To 27 1
29 BUTTON 7
30 RONDELLE *GROMMET 4
33 BLACK SIDE PANEL-RH 1
34 FOAM RIGHT 1
35 RH REAR FOAM 1
37 BLACK SIDE PANEL-LH 1
38 FOAM LH 1
39 LH REAR FOAM 1
40 HANDLE FASTENER QUARTER-TURN 2
41 QUARTER-TURN HANDLE 2
42 LOCKING PLATE 2
43 SIDE PANEL SUPPORT 2
44 RIVET 4.8X12 AL BLACK(1 PAC 50 PC) 2
45 EMBOUT *END PIECE 2
46 LATCH-PANEL 2
47 RH/LH MIRROR ASS Y Includes 46 To 51 1
48 Torx Screw 4
49 Domed Nut M6 4
50 Rubber Washer 5 mm 4
51 M6 FENDER WASHER DIN 9021B BLACK ZINC Model-SE (10.000 per pack) 4
52 RH HEADLAMP ASS Y Includes 31 To 35 1
53 Halogen Bulb, 60/55 W, 12 V ( H4 ) 1
54 CAP 1
55 COVER 1
56 Torx Screw M6 X 20 3
57 Panel Nut M6 X 1.0 3
58 LH HEADLAMP ASS Y Includes 31 To 35 1
