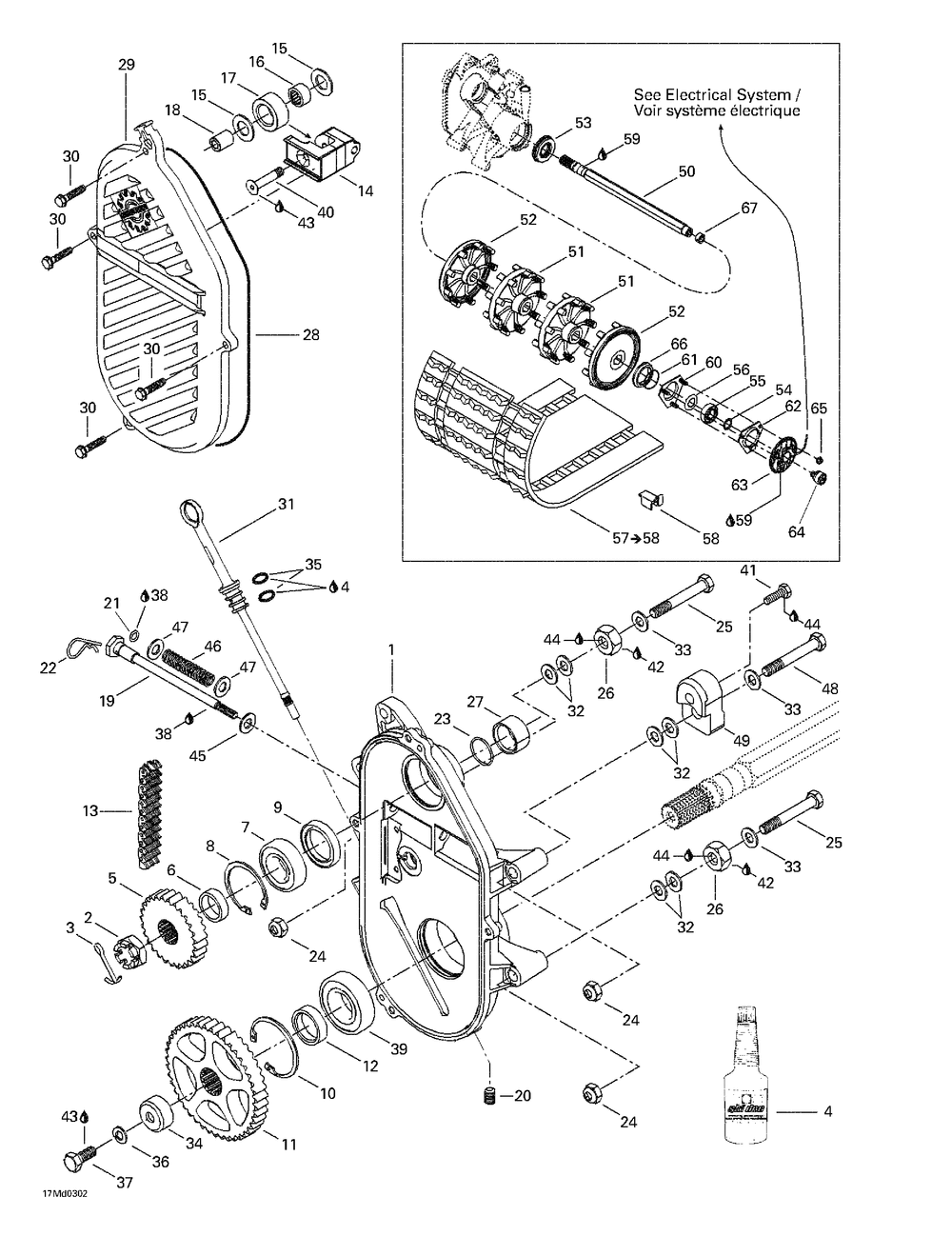

05- Drive System

№	Наименование	Кол-во
1	CHAINCASE GTX LTD	1
2	HEX. CASTLE NUT M20 X 1.5	1
3	PIN COTTER (10.000 per pack)	1
4	HUILE *XPS SYNTH OIL CHAINCASE OIL (16.000 per pack)	0
5	SPROCKET 21 TEETH	1
6	SHIM	1
7	BALL BEARING	1
8	CIRCLIP (10.000 per pack)	1
9	OIL SEAL	1
10	CIRCLIP INTERIOR	1
11	ROUE DENTEE 43D*SPROCKET 43TH	1
12	SHIM	1
13	DRIVE CHAIN LARGE 74 LINKS	1
14	CHAIN TENSIONNER	1
15	RONDELLE *WASHER (10.000 per pack)	2
16	NEEDLE BEARING	1
17	ROLLER	1
18	SPACER	1
19	ADJUSTMENT SCREW	1
20	Plug 1/8?-27	1
21	O-RING (5.000 per pack)	1
22	GOUP.SURETE *COTTER PIN (5.000 per pack)	1
23	O-RING (2.000 per pack)	1
24	HEX. FLANGED ELASTIC NUT M10 (10.000 per pack)	3
25	HEX. SCREW M10 X 75 (10.000 per pack)	2
26	SPACER	2
27	SPACER	1
28	O-RING	1
29	CHAINCASE COVER	1
30	HEX. FLANGED SCREW M6 X 30 (10.000 per pack)	4
31	FILLER CAP ASS Y	1
32	RONDELLE *WASHER (5.000 per pack)	6
33	Washer	3
34	CAP	1
35	O-RING (10.000 per pack)	2
36	WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack)	1
37	HEX. SCREW M10 X 25 (10.000 per pack)	1
38	SUSPENSION GREASE 10 X 400 G	0
39	BALL BEARING	1
40	SCREW	1
42	LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ	0
43	LOCTITE 271 10 ML	0
44	LOCTITE 243 10 ML	0
45	RONDELLE *WASHER (5.000 per pack)	1
46	SPRING	1
47	RONDELLE TREMPE*WASHER-HARD GTX LTD (10.000 per pack)	2
48	Hex. Screw M10 X 60	1
53	OIL SEAL ASS Y	1
54	CIRCLIP (5.000 per pack)	1
55	BALL BEARING	1
56	BEARING PROTECTOR	1
57	TRACK ASS Y Includes 57 - 58.	1
58	GUIDE *CLIP Track 16X136X1.7	32
60	BEARING HOUSING	1
61	CIRCLIP	2
62	FLANGE	1
63	ROTATION SENSOR	1
64	MAGNETIC ADAPTOR	1
65	Hex. Flanged Elastic Nut M8	3
67	ADAPTOR	1
