05- Chaincase

Корзина пуста

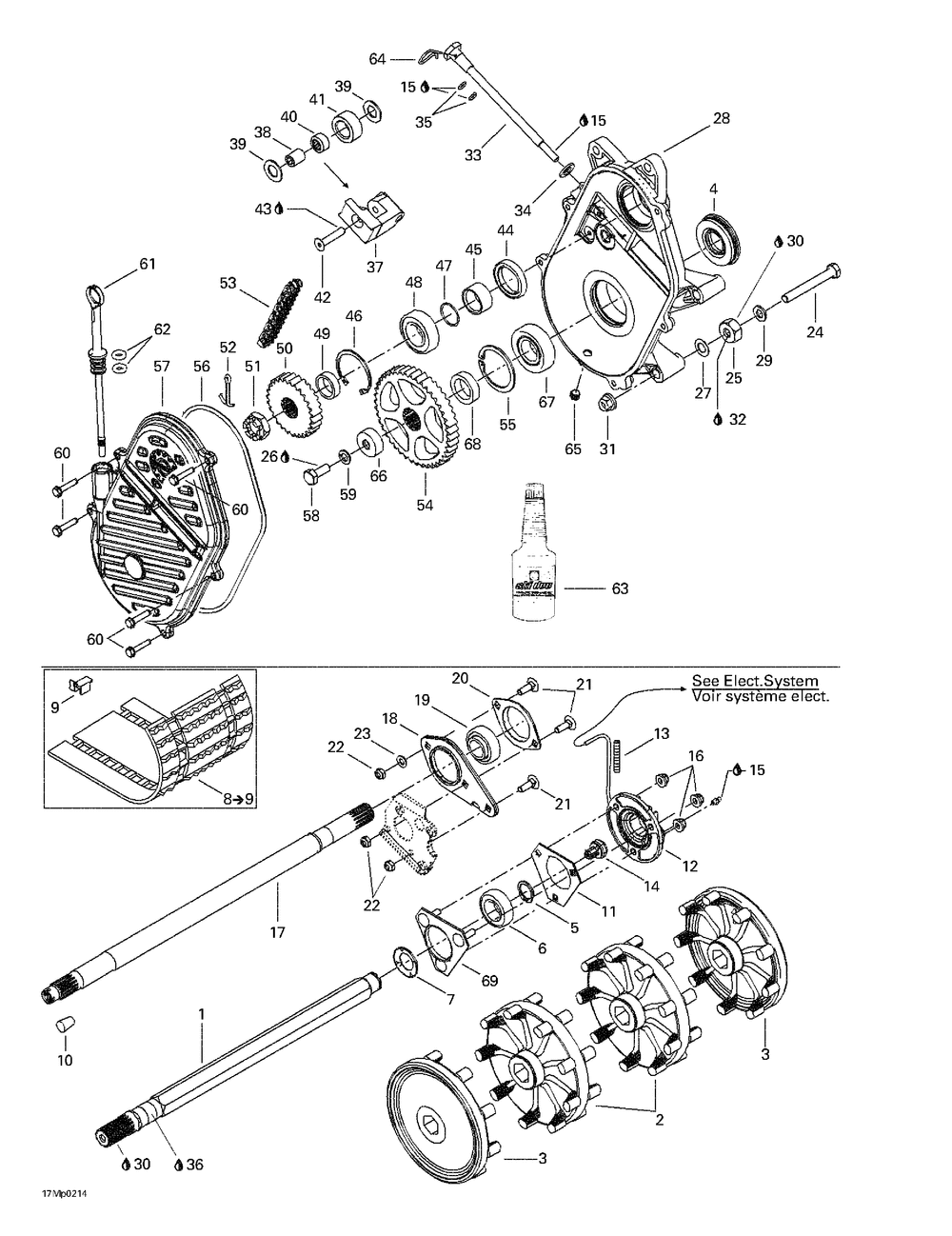

SKI-DOO MX Z 800 Rev MX Z 800 Rev 05- Chaincase
05- Chaincase
№ Наименование Примечание Кол-во
1 DRIVE AXLE 1
2 SPROCKET 9 TEETH 2
3 HALF SPROCKET 9 TEETH 2
4 OIL SEAL ASS Y 1
5 CIRCLIP (5.000 per pack) 1
6 BALL BEARING 1
7 BEARING PROTECTOR 1
8 TRACK 15" X 121" X 0.88" ASS Y 15"X121"X1.000" SP / Includes items 8 to 9 1
9 GUIDE *CLIP Track 16X136X1.7 32
10 CORK 1
11 FLANGE 1
12 CAPTEUR VITESSE*SPEED SENSOR 1
13 Tubing 6 mm  (3.000 per pack) 0
14 MAGNETIC ADAPTOR 1
15 SUSPENSION GREASE 10 X 400 G 0
16 Hex. Flanged Elastic Nut M8 3
17 COUNTER SHAFT 1
18 SPACER 1
19 ENS ROULEMENT BILLE*BALL BEARING KIT 1
20 FLANGE 1
21 CARRIAGE BOLT M8 X 25 (5.000 per pack) 3
22 Hex. Elastic Stop Nut M8 3
23 Flat Washer 8 mm 1
24 HEX. SCREW M10 X 80 3
25 SPACER 3
26 LOCTITE 271 10 ML 0
27 RONDELLE *WASHER (5.000 per pack) 6
29 Washer 3
30 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
31 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 3
32 LOCTITE 243 10 ML 0
33 ADJUSTMENT SCREW 1
34 Flat Washer 10 mm 1
35 O-RING (10.000 per pack) 2
37 CHAIN TENSIONER 1
38 SPACER 1
39 RONDELLE *WASHER (10.000 per pack) 2
40 NEEDLE BEARING 1
41 ROLLER 1
42 SCREW 1
44 OIL SEAL 1
45 SPACER 1
46 CIRCLIP (10.000 per pack) 1
47 O-RING (2.000 per pack) 1
48 BALL BEARING 1
49 SHIM 1
50 SPROCKET LARGE 26 TEETH Legend SE 800 SDI 1
51 HEX. CASTLE NUT M20 X 1.5 1
52 PIN COTTER (10.000 per pack) 1
53 DRIVE CHAIN 72 LINKS 1
54 ROUE DENTEE 43D*SPROCKET 43TH 1
55 CIRCLIP INTERIOR 1
56 O-RING 1
58 HEX. SCREW M10 X 25 (10.000 per pack) 1
59 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 1
60 HEX. FLANGED SCREW M6 X 30 (10.000 per pack) 5
61 FILLER CAP ASStahos_Y 1
62 O-RING (10.000 per pack) 2
63 HUILE *XPS SYNTH OIL CHAINCASE OIL (16.000 per pack) 0
64 GOUP.SURETE *COTTER PIN (5.000 per pack) 1
65 Plug 1/8?-27 1
66 CAP 1
67 BALL BEARING 1
68 SHIM 1
69 BEARING HOUSING 1
