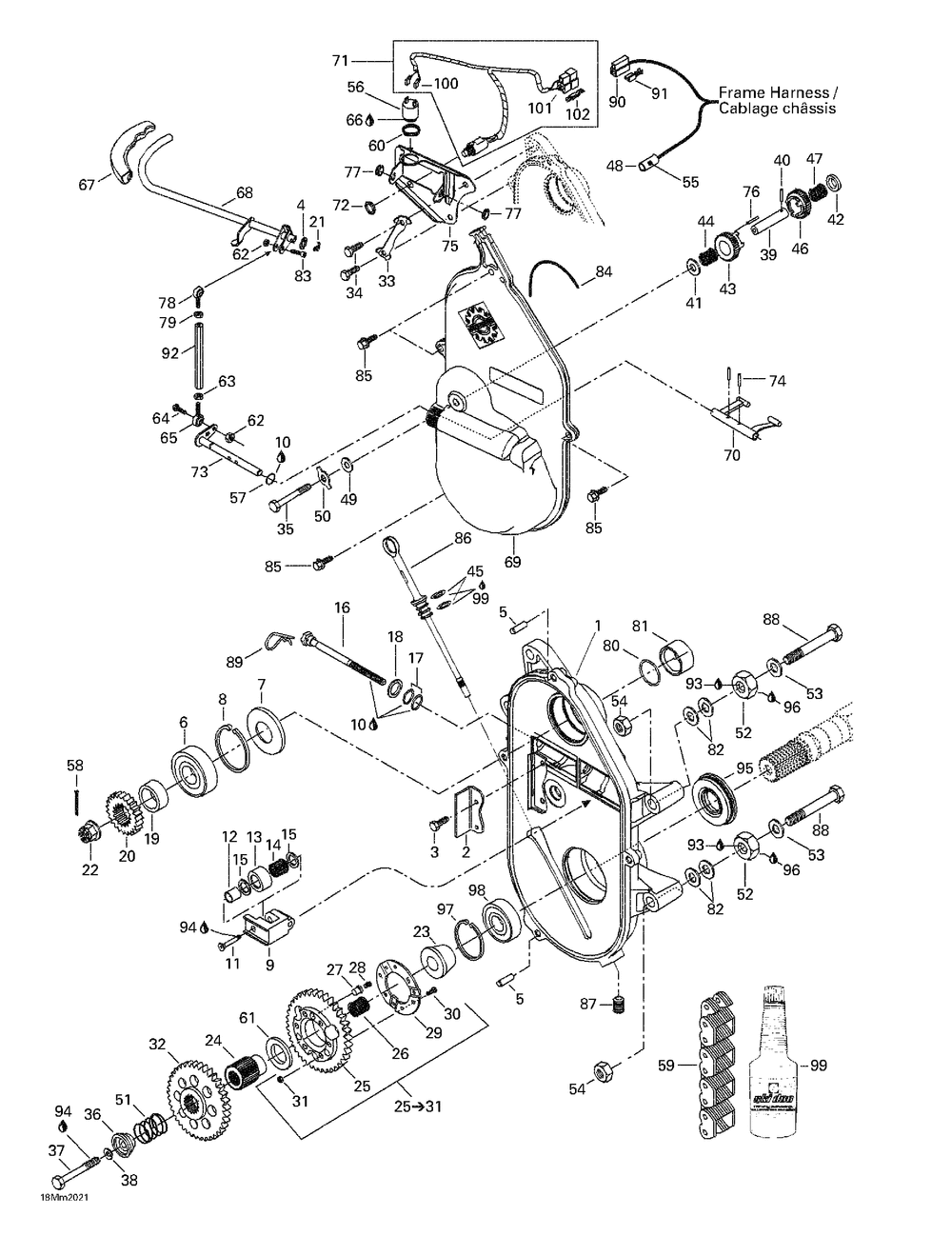

SKI-DOO Grand Touring 600 Grand Touring 600 05- Transmission
05- Transmission
№ Наименование Примечание Кол-во
1 CHAINCASE 1
2 SLIDER CHAIN 1
3 HEX. FLANGED SCREW M5 X 11 (10.000 per pack) 2
4 RONDELLE *WASHER 1
5 CYLINDER PIN 2
6 BALL BEARING 1
7 OIL SEAL 1
8 CIRCLIP (10.000 per pack) 1
9 CHAIN TENSIONER 1
10 SUSPENSION GREASE 10 X 400 G 0
11 SCREW 1
12 SPACER 1
13 ROLLER 1
14 NEEDLE BEARING 1
15 RONDELLE *WASHER (10.000 per pack) 2
16 ADJUSTMENT SCREW 1
17 O-RING (10.000 per pack) 2
18 Flat Washer 10 mm 1
19 SHIM 1
20 SPROCKET 23 TEETH (LARGE) Grand Touring 600. Grand Touring 700. 1
21 COTTER PIN (10.000 per pack) 1
22 HEX. CASTLE NUT M20 X 1.5 1
23 RETAINING RING 1
24 COUPLING AXLE 1
25 PIGNON 44D ASS.*SPROCK-44TH ASSY 1
25 PIGNON 44D ASS.*SPROCK-44TH ASSY Includes 55 to 62 1
26 NEEDLE BEARING 1
27 DRIVE PIN (3.000 per pack) 3
28 SPRING (3.000 per pack) 3
29 RETAINER RING 1
30 HEX. SCREW M5 X 20 (10.000 per pack) 6
31 NUT-LOCK SPRING DIN.980V (10.000 per pack) 6
32 SLIDING GEAR 56 TEETH 1
33 LOCKING TAB 1
34 HEX. SCREW M10 X 35 (10.000 per pack) 2
35 HEX. SCREW M8 X 90 Model-LE (5.000 per pack) 1
36 CAP 1
37 HEX. SCREW M10 X 50 (10.000 per pack) 1
38 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 1
39 REVERSE SHAFT 1
40 ROLLED PIN M3 X 10 1
41 SPACER 1
42 RING 1
43 ENGREN. 19D ASS*SPROCK-19 TEETH ASSY. Includes 77 to 78 1
44 NEEDLE BEARING 1
45 O-RING (10.000 per pack) 2
46 PIGNON 19 DENTS*19TH SPROCKET 1
47 NEEDLE BEARING 1
48 HOSE 0
49 WASHER DIN 7603 (5.000 per pack) 1
50 TAB LOCK 1
51 RELEASE SPRING 1
52 SPACER 3
53 Washer 3
54 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 3
57 O-RING (5.000 per pack) 1
58 PIN COTTER (10.000 per pack) 1
59 DRIVE CHAIN 74 LINKS 1
60 PLASTIC NUT 1
61 RONDELLE *WASHER (2.000 per pack) 1
62 Elastic Stop Nut M6 2
63 LH HEX. NUT M6 (5.000 per pack) 1
64 HEX. SCREW M6 X 20 (10.000 per pack) 1
65 LH BALL-JOINT 1
66 SILICONE SEALANT 51388 300 ML 0
67 GRIP 1
68 POIGNEE SOUDEE *HANDLE-WELD. 1
69 COVER 1
70 FORK 1
71 INTERRUPTEUR *SWITCH Includes 95 - 99. 1
73 FORK AXLE 1
74 GOUP.RESSORT *PIN-SPRING 2
75 SUPPORT REVERSE 1
76 ALIGNEMENT ROD (5.000 per pack) 1
77 BUSHING 2
78 RH BALL-JOINT 1
79 Hex. Nut M6 1
80 O-RING (2.000 per pack) 1
81 SPACER 1
82 RONDELLE *WASHER (5.000 per pack) 6
83 SOCKET HEAD SCREW M6 X 20 (5.000 per pack) 1
84 O-RING 1
85 HEX. FLANGED SCREW M6 X 30 (10.000 per pack) 4
86 FILLER CAP ASStahos_Y 1
87 Plug 1/8?-27 1
88 HEX. SCREW M10 X 80 3
89 GOUP.SURETE *COTTER PIN (5.000 per pack) 1
90 FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack) 1
91 FEMALE TERMINAL (10.000 per pack) 2
92 TIE ROD 1
93 LOCTITE 243 10 ML 0
94 LOCTITE 271 10 ML 0
95 OIL SEAL ASS Y 1
97 CIRCLIP INTERIOR 1
98 BALL BEARING 1
99 HUILE *XPS SYNTH OIL CHAINCASE OIL (16.000 per pack) 0
100 FEMALE TERMINAL (10.000 per pack) 2
101 MALE HOUSING (5.000 per pack) 1
102 MALE TERMINAL (10.000 per pack) 2
