SKI-DOO Grand Touring Sport 550F XP137 Grand Touring Sport 550F XP137 05- Drive System _17M1527

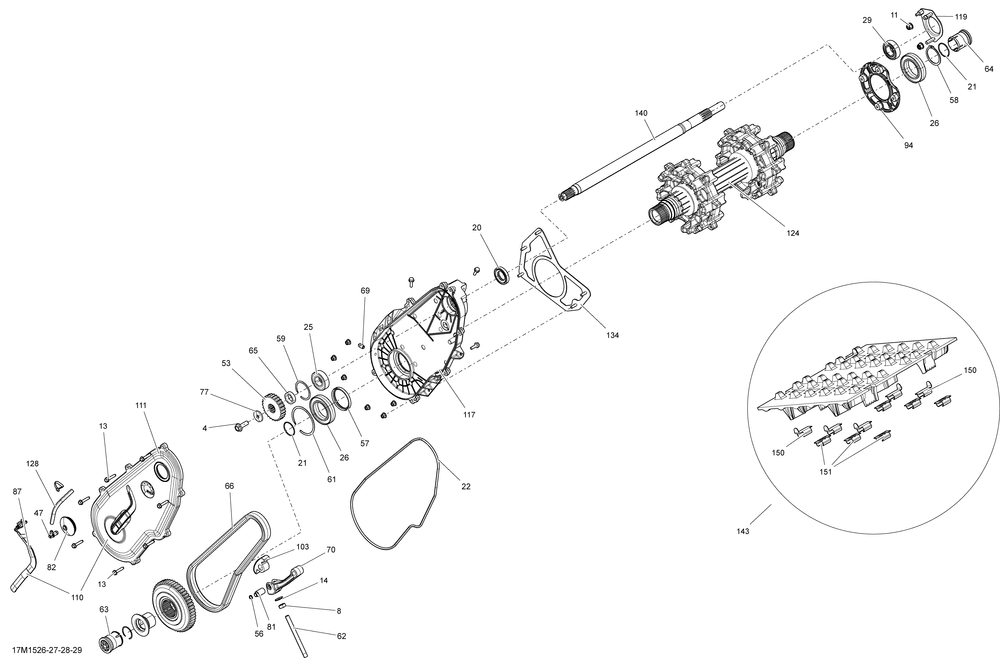

05- Drive System _17M1527
№ Наименование Примечание Кол-во
4 HEX. FLANGED SCREW M10 X 30 SCOTCH GRIP (5.000 per pack) 1
8 Hex. Nut M10 1
11 Hex. Flanged Elastic Nut M8 2
13 FLANGED HEX. SCREW M6 X 30 Package Sport (10.000 per pack) 7
14 BONDED WASHER 3/8 X 7/8 (5.000 per pack) 1
20 OIL SEAL 1
21 O-RING 2
22 O-RING 1
25 Ball Bearing 1
26 Ball Bearing 2
29 BALL BEARING 1
47 MALE CONNECTOR (5.000 per pack) 1
53 SPROCKET 19 TEETH Package Sport Egine 600 1
56 Circlip 1
57 SEAL 1
58 CIRCLIP 2
59 CIRCLIP 1
60 SPROCKET 45 TEETH Package Sport 1
61 CIRCLIP 1
62 ADJUSTMENT SCREW 1
63 MAGNETIC CAP 1
65 SHIM 1
66 DRIVE CHAIN 102 LINKS Engine 600 ETEC Package XRS 1
69 MAGNETIC PLUG Package Sport 1
70 CHAIN TENSIONER 1
77 SPRING WASHER M10 (3.000 per pack) 1
81 TENSIONNER AXLE 1
82 CAP 1
87 CAPTEUR *SENSOR 1
94 HOUSING BEARING 1
103 SLIDER CHAIN 1
110 CHAINCASE COVER ASS Y Package Sport 1
111 CASTING COVER 1
117 CHAINCASE Package Sport 1
119 BEARING HOUSING 1
124 DRIVE AXLE ASS Y 1
128 Hose, Polyurethane 1
134 PLATE ASSY 1
140 COUNTERSHAFT 1
143 TRACK ASS Y 16X137X1.2RS Model N 1
