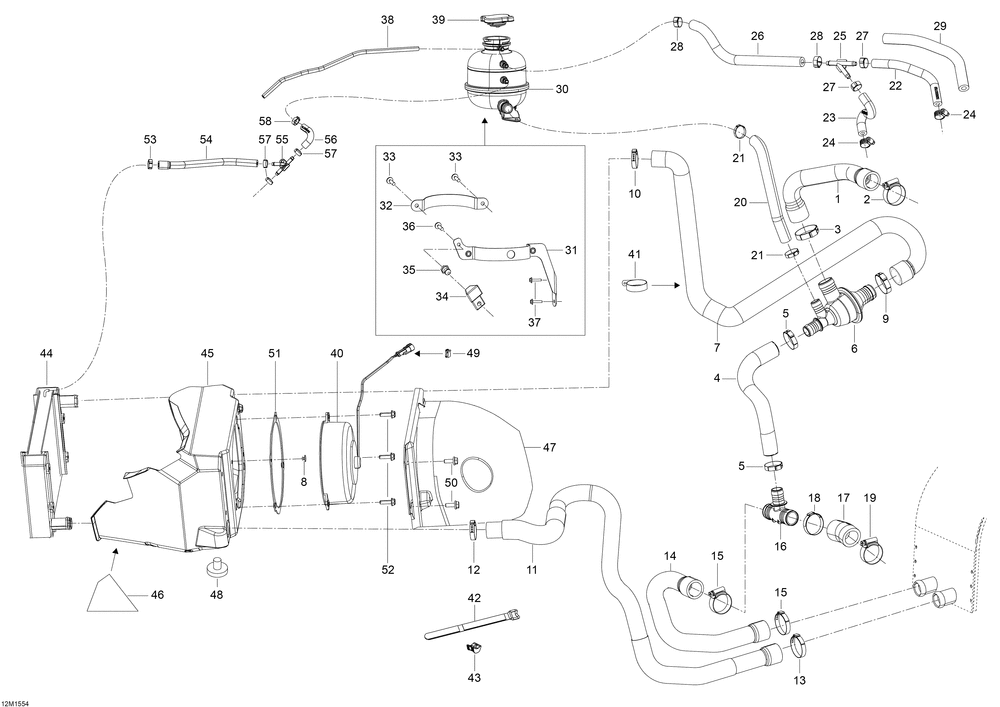

01- Cooling System

01- Cooling System _12M1554

№	Наименование	Кол-во
1	ENGINE OUTLET HOSE	1
2	ABA GEAR CLAMP	1
3	OETIKER CLAMP	1
4	BYPASS HOSE	1
5	Crimp Clamp	2
6	THERMOSTAT HOUSING	1
7	HOSE RADIATOR	1
8	Rivet 3/16"	1
11	AIR RADIATOR HOSE	1
14	RETURN RADIATOR HOSE	1
16	T-FITTING	1
17	ENGINE INLET HOSE	1
20	FILLING HOSE	1
21	Oetiker Gear Clamp	2
22	BLEEDER HOSE	1
23	BLEEDER HOSE	1
24	TRIDON GEAR CLAMP (10.000 per pack)	2
25	Y-FITTING	1
26	BOYAU PURGE *BREATHER HOSE	1
27	Oetiker Clamp	2
28	Crimp Clamp	2
29	PROTECTOR TUBE 16 MM	1
30	COOLANT TANK	1
31	RESERVOIR SUPPORT	1
32	SUPPORT	1
33	FORMING SCREW M5 X 16	2
34	SUPPORT	1
35	KNOB (6.000 per pack)	1
36	TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack)	1
37	SCREW PLASTITE TYPE K-40 M4 X 16 (2.000 per pack)	2
38	HOSE 6 MM (15.000 per pack)	1
39	Pressure Cap	1
40	FAN	1
42	VELCRO STRIP	2
43	BUMPER	1
44	RADIATOR	1
45	COOLING FAN SHROUD	1
46	FOAM	1
47	DEFLECTOR	1
48	RUBBER BUMPER (2.000 per pack)	1
49	CLIP	1
50	Hex. Flanged Screw M6 X 12	4
51	SCREW PLATE	1
52	HEX. FLANGED SCREW M6 X 20 (5.000 per pack)	3
53	OETIKER CLAMP (5.000 per pack)	1
54	FORMED HOSE	1
55	Y-FITTING	1
56	FORMED HOSE	1
