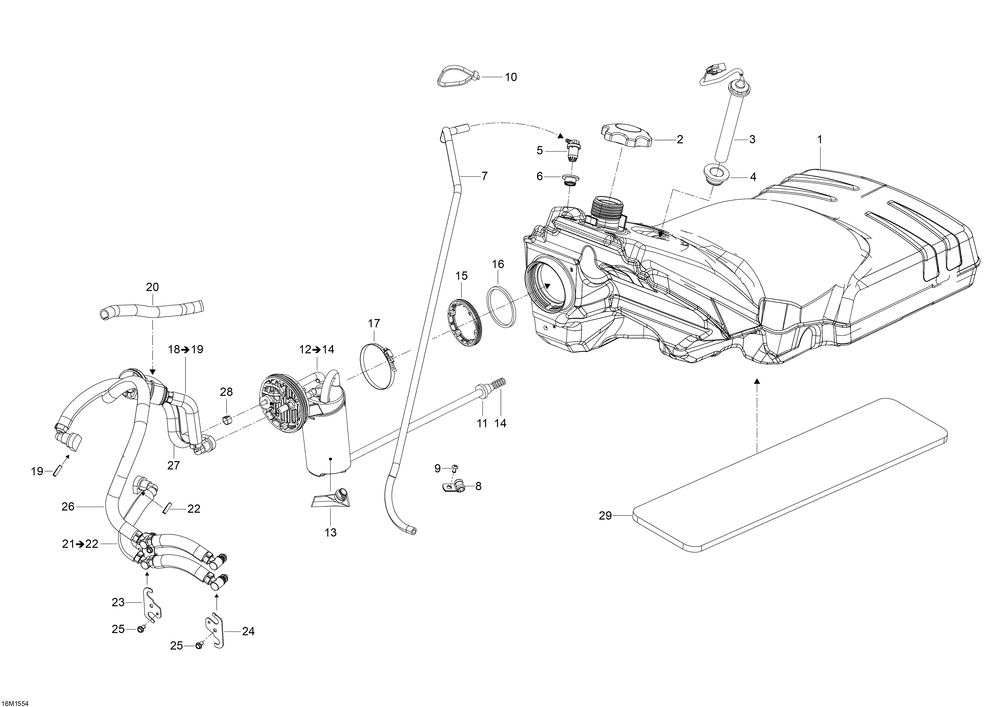

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 2 | FUEL TANK CAP Octane 91 | 1 | |
| 3 | FUEL SENSOR | 1 | |
| 4 | PASSE-FILS *GROMMET | 1 | |
| 5 | CHECK VALVE | 1 | |
| 6 | GROMMET | 1 | |
| 7 | Hose, Polyurethane | 1 | |
| 8 | HOSE CLIP Not Shown | 1 | |
| 9 | AVEX RIVET (50.000 per pack) | 1 | |
| 10 | Tie-Rap 180 mm | 0 | |
| 11 | GROMMET 16/10X11 | 1 | |
| 12 | FUEL PUMP ASS Y Includes 11 To 13 | 1 | |
| 13 | FUEL FILTER | 1 | |
| 14 | FUEL FILTER | 1 | |
| 15 | RING | 1 | |
| 16 | GASKET | 1 | |
| 17 | ABA GEAR CLAMP | 1 | |
| 18 | BOYAU ASSEMBLE *HOSE ASS`Y Includes 17 To 18 | 1 | |
| 19 | LOCKING CLIP (2.000 per pack) | 1 | |
| 20 | Tubing 16 mm | 1 | |
| 21 | BOYAU ASSEMBLE *HOSE ASS`Y Includes 19 To 19a | 1 | |
| 23 | ATTACHE *BRACKET | 1 | |
| 24 | ATTACHE *BRACKET | 1 | |
| 25 | Flanged Hex. Screw M5 X 10 | 2 | |
| 26 | HOSE ASS`Y | 1 | |
| 27 | FORMED HOSE | 1 | |
| 28 | Crimp Clamp | 2 | |
| 29 | FOAM | 1 |
