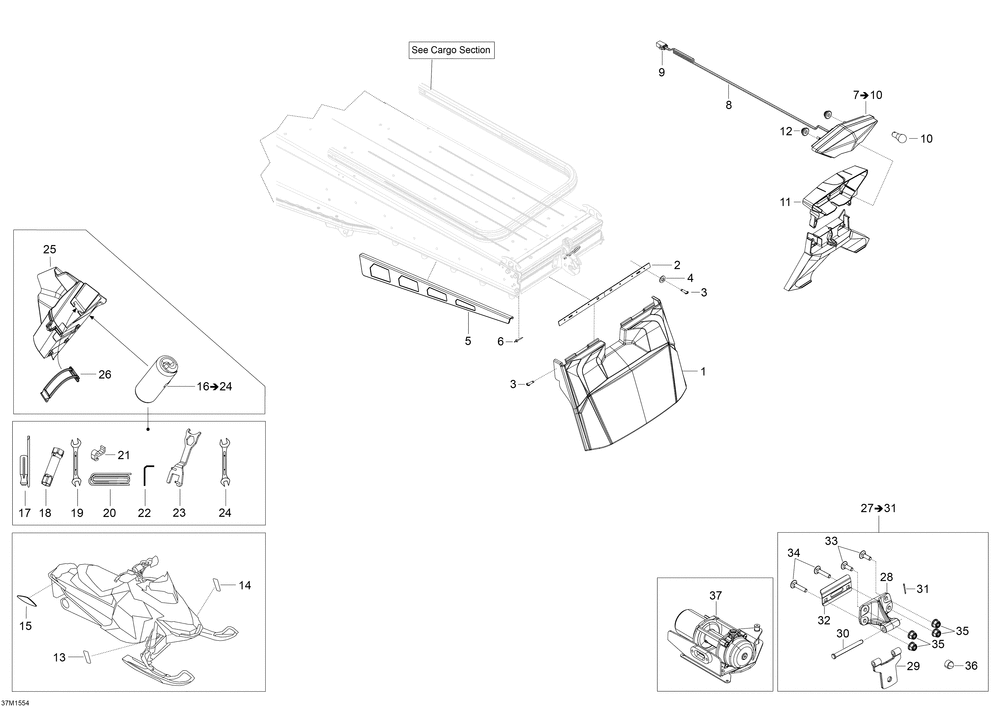

SKI-DOO Expedition SE 600 E-TEC Expedition SE 600 E-TEC 09- Utilities _37M1554
09- Utilities _37M1554
№ Наименование Примечание Кол-во
1 SNOW GUARD Model-North America 1
2 FASTENING PLATE 500 1
3 FORMING SCREW M5 X 16 10
4 WASHER M5 (10.000 per pack) 6
5 RH PROTECTOR 1
5 LH PROTECTOR 1
6 RIVET HUCKLOK 48 MM HKLP-R6-5GAT 2
7 REAR LIGHT Includes 7 To 10 1
8 REAR WIRING HARNESS 1
9 MALE HOUSING 3 CIRCUITS (5.000 per pack) 1
10 BULB (10.000 per pack) 1
11 REAR LIGHT COVER 1
12 RUBBER GROMMET 2
13 YELLOW RH REFLECTOR 1
14 YELLOW LH REFLECTOR 1
15 Red Lateral Reflector 2
16 TOOL KIT Includes 20 To 28 1
17 Screw Driver 1
18 CLE A DOUILLE *WRENCH-SOCKET 1
19 Fork Wrench 10/13 mm 1
20 STARTER ROPE METER (30.000 per pack) 1
21 STARTER GRIP 1
22 SPACING TOOL 1
23 WRENCH SUSPENSION 1
25 TOOL KIT RACK Model-600 E-TEC 1
26 Latch 1
27 HITCH ASS Y Includes 39 To 43 Model-North America 1
30 PIN-RETAINER 1
31 COTTER PIN (10.000 per pack) 1
32 PLAQUE *PLATE 1
33 CARRIAGE BOLT M8 X 25 (5.000 per pack) 2
34 BOLT CARRIAGE M8 X 40 (10.000 per pack) 2
35 Hex. Flanged Elastic Nut M8 4
36 COVER Model-SE 4
37 WINCH KIT Model-SE 1
