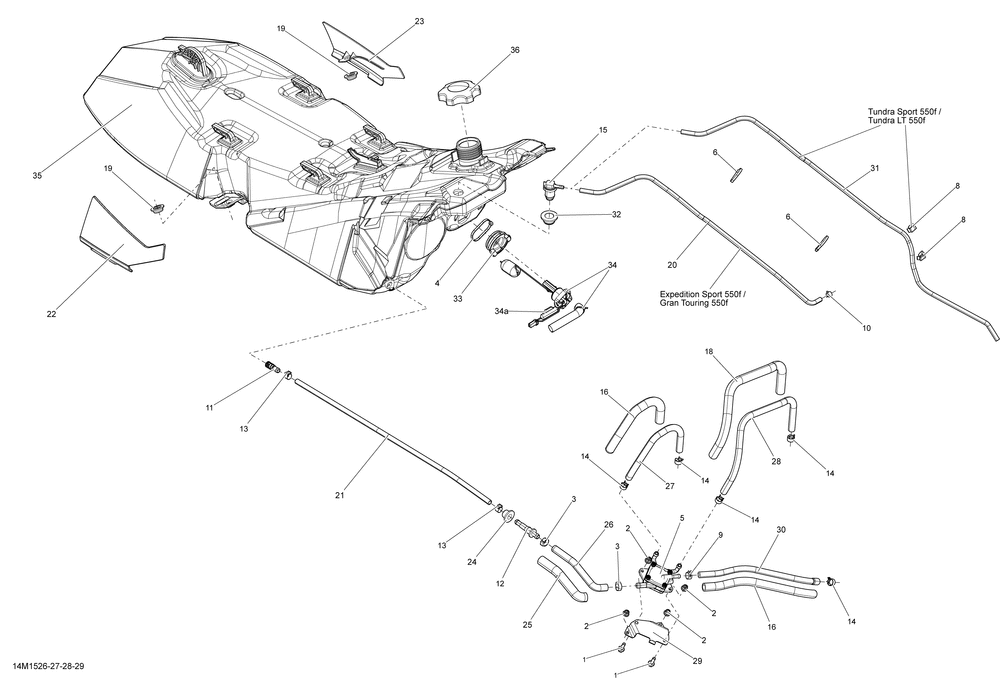

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Hex. Flanged Screw M6 X 20 | 2 | |
| 2 | Hex. Flanged Elastic Nut M6 | 4 | |
| 3 | OETIKER CLAMP (5.000 per pack) | 2 | |
| 4 | Tie-Rap 350 mm | 1 | |
| 5 | FUEL PUMP | 1 | |
| 6 | Tie-Rap 180 mm | 2 | |
| 9 | Spring Clamp | 1 | |
| 10 | Spring Clamp | 1 | |
| 11 | FUEL FILTER | 1 | |
| 12 | MALE CONNECTOR (5.000 per pack) | 1 | |
| 13 | NORMA SPRING CLAMP (5.000 per pack) | 2 | |
| 14 | Universal Spring Clamp | 5 | |
| 15 | CHECK VALVE | 1 | |
| 16 | Tubing 16 mm | 2 | |
| 19 | SHOULDER BUSHING | 2 | |
| 20 | Hose, Polyurethane | 1 | |
| 21 | BOYAU *HOSE | 1 | |
| 24 | GROMMET | 1 | |
| 26 | FORMED HOSE | 1 | |
| 27 | BOYAU *HOSE | 1 | |
| 29 | PUMP BRACKET | 1 | |
| 30 | FORMED HOSE | 1 | |
| 32 | GROMMET | 1 | |
| 33 | PASSE-FILS *GROMMET | 1 | |
| 34 | FUEL LEVEL SENSOR ASS Y Includes 36 To 36a | 1 | |
| 34a | FUSE 0.5 AMPÈRE | 1 | |
| 35 | FUEL TANK Except Summit | 1 | |
| 36 | FUEL TANK CAP Model-North America | 1 |
