SKI-DOO SUMMIT - 850 E-TEC SUMMIT - 850 E-TEC 07- Front Suspension And Ski - All Models

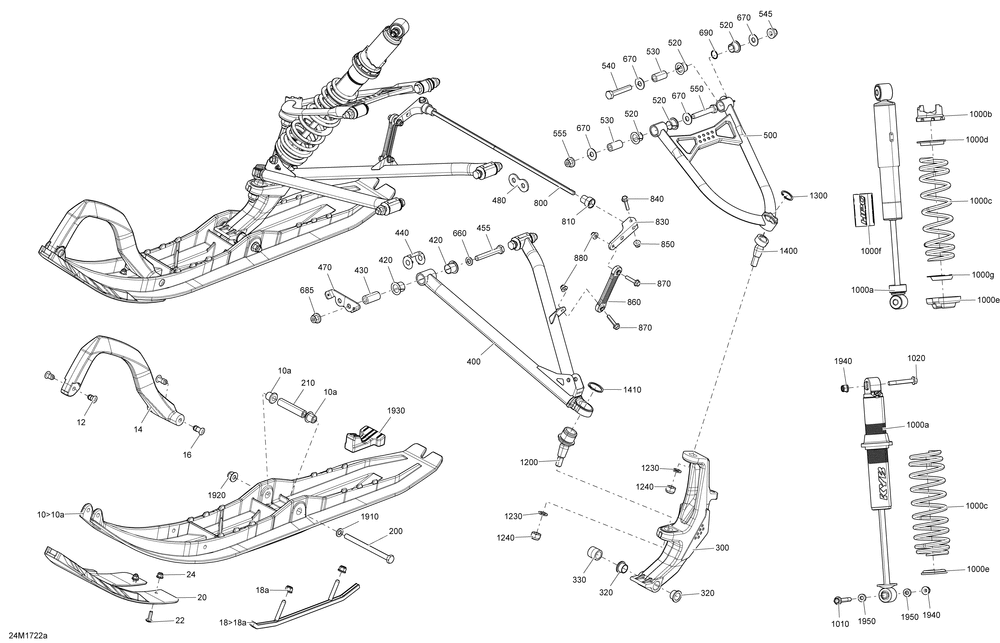

07- Front Suspension And Ski - All Models
№ Наименование Примечание Кол-во
10>10a DS SKI Includes 10 to 10a 2
10>10a DS SKI Includes 10 to 10a 2
10a CUSHION 4
12 RETAINER (16.000 per pack) 4
14 WHITE HANDLE X-T3 (TEHA TEHB TEHF) 1
14 BLACK HANDLE 1
16 RETAINER 4
18a Hex. Flanged Elastic Nut M8 0
20 SKI TIP Package-SP-T3 X-T3 2
22 SCREW-SOCKET TRUSS HD. M6X20 4
24 Hex. Flanged Elastic Nut M6 4
200 HEX. SCREW M10 X 130 2
210 SKI AXEL 2
300 SKILEG MACHINED 1
300 SKI-LEG MACHINED 1
300 SKILEG MACHINED 1
300 SKI-LEG MACHINED 1
300 RH SKI LEG 1
300 LH SKI LEG 1
320 BUSHING 4
330 SPACER 2
400 LOWER ARM LH 1
400 LOWER ARM RH 1
420 COUSSINET *BUSHING 8
430 BUSHING Package-X-T3 X 4
440 WEAR PLATE 4
455 SCREW HEX. M10 X 70 4
470 WEAR PLATE 1
480 PLATE 1
500 LH.ARM 1
500 ARM-UPPER 1
520 COUSSINET *BUSHING 8
530 BUSHING 4
540 SCREW HEX. M10 X 60 (5.000 per pack) 2
545 Hex. Flanged Elastic Nut M10 2
660 RONDELLE *WASHER (10.000 per pack) 4
670 RONDELLE *WASHER (5.000 per pack) 8
690 O-RING 4
800 STABILISATOR 1
810 COUSSINET *BUSHING 2
830 LEVER-STABIL.MACH. 2
840 HEX FLANGED SCREW M6 X 30 2
860 DOUBLE BALL JOINT LINK 2
1000a AMORTISSEUR *FRONT SHOCK Package SP 2
1000a AMORTISSEUR *FRONT SHOCK Package X 2
1000b ADJUSTEMENT CAM 2
1000c DEEP BLACK SPRING Package SP 2
1000d Spring Guide 2
1000e BUTEE RESSORT *STOPPER-SPRING Package Backcountry X 2
1010 SCREW HEXAGONAL FLANGE M8 X 58 2
1200 JOINT ROTULE *BALL JOINT 2
1230 RONDELLE *WASHER (5.000 per pack) 4
1240 Hex Elastic Nut M12 X 1.25 4
1300 CIRCLIP (2.000 per pack) 2
1400 UPPER BALL JOINT 2
1410 CIRCLIP *SNAP RING 2
1910 Washer 2
1920 Hex. Elast. Flanged Nut M10 2
1930 SKI STOPPER 2
1940 NUT-FLANGE ELASTIC DIN.6926 4
1950 SPACER 4
