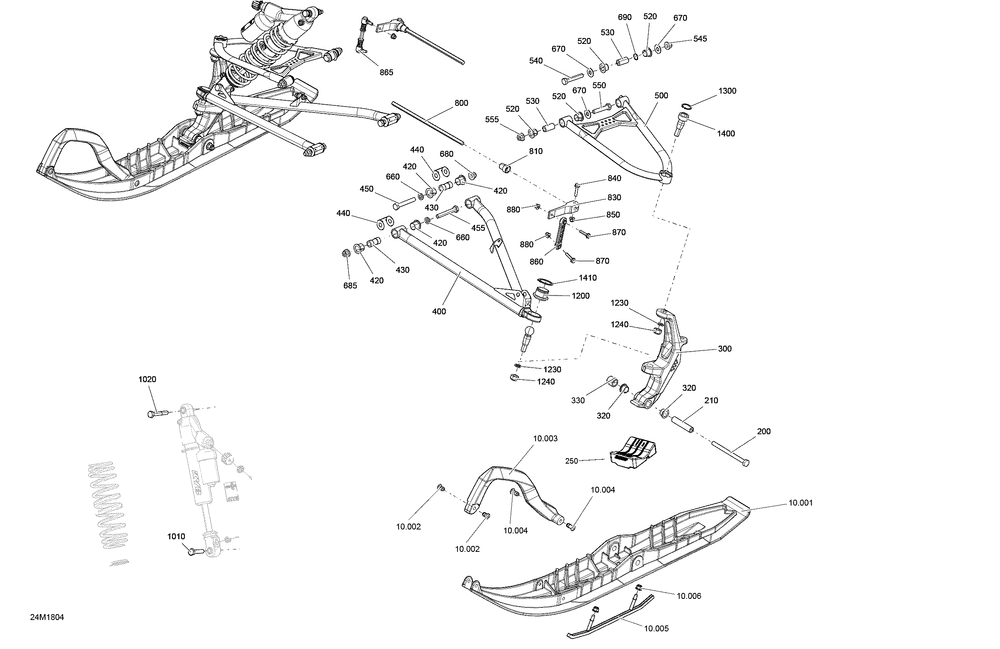

07- Front Suspension And Ski MXZ Engine 850 E-TEC - Package X RM

Корзина пуста
SKI-DOO MXZ 850 E-TEC MXZ 850 E-TEC 07- Front Suspension And Ski MXZ Engine 850 E-TEC - Package X RM
07- Front Suspension And Ski MXZ Engine 850 E-TEC - Package X RM
№ Наименование Примечание Кол-во
10 CARBIDE RUNNER KIT Includes 3 To 4 1
10.001 DEEP BLACK RH PILOT SKI 5.7 ASS Y Model N 1
10.001 DEEP BLACK LH PILOT SKI 5.7 ASS Y Model N 1
10.002 RETAINER (16.000 per pack) 2
10.003 BLACK HANDLE Model N 1
10.003 YELLOW HANDLE Model N 1
10.004 RETAINER 2
10.006 Hex. Flanged Elastic Nut M8 2
200 HEX. SCREW M10 X 130 2
210 SKI AXEL 2
300 SKI-LEG MACHINED Package Adrenaline 1
310 SKILEG MACHINED Package Adrenaline 1
320 BUSHING 4
330 BUTÉE *STOPPER 2
400 ARM-LOWER RIGHT 1
410 ARM-LOWER LEFT 1
420 COUSSINET *BUSHING 8
430 BUSHING 4
440 WEAR PLATE 4
445 O-RING 2
450 SCREW HEX. M10 X 70 2
470 WEAR PLATE 1
480 PLATE 1
500 ARM-UPPER 1
510 ARM-UPPER 1
520 COUSSINET *BUSHING 8
530 BUSHING 4
540 SCREW HEX. M10 X 60 (5.000 per pack) 2
545 Hex. Flanged Elastic Nut M10 2
660 RONDELLE *WASHER (10.000 per pack) 4
670 RONDELLE *WASHER (5.000 per pack) 8
800 STABILISATOR 1
810 COUSSINET *BUSHING 2
830 LEVER-STABIL.MACH. 2
840 HEX FLANGED SCREW M6 X 30 2
850 Hex. Flanged Elastic Nut M6 2
860 Sway Bar Double Joint Link 2
1010 SCREW HEXAGONAL FLANGE M8 X 58 2
1200 JOINT ROTULE *BALL JOINT 2
1230 RONDELLE *WASHER (5.000 per pack) 4
1240 Hex Elastic Nut M12 X 1.25 4
1300 CIRCLIP (2.000 per pack) 2
1400 UPPER BALL JOINT 2
1410 CIRCLIP *SNAP RING 2
