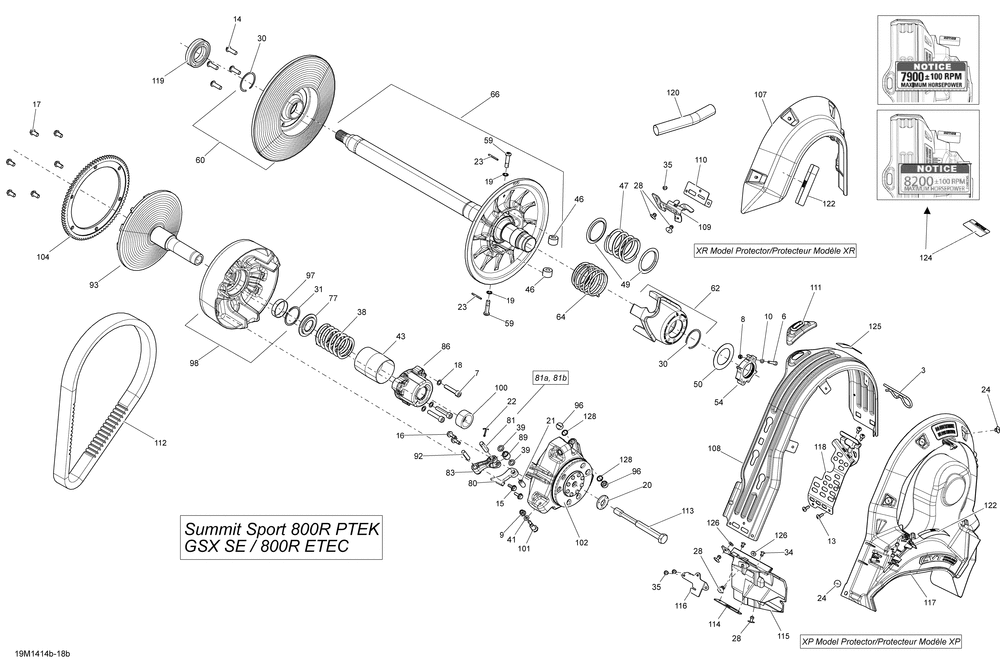

SKI-DOO GSX SE 800RE XR GSX SE 800RE XR 05- Pulley System 800R ETEC
05- Pulley System 800R ETEC
№ Наименование Примечание Кол-во
3 GOUP.SURETE *PIN-HAIR (5.000 per pack) 1
6 SOCKET SCREW M5 X 25 (10.000 per pack) 1
7 SOCKET HEAD SCREW M8 X 40 Model-SE (5.000 per pack) 3
8 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 1
9 Hex. Flanged Elastic Nut M6 3
10 FLAT WASHER M5 (10.000 per pack) 1
13 Torx Screw M5 X 14 4
14 TORX SCREW M8 X 25 SCOTCH GRIP (4.000 per pack) 4
15 SERRATED HEX. FLANGE BOLT M6 (6.000 per pack) 6
16 FLANGED HEX. SCREW M6 X 18 SCOTCH GRIP (6.000 per pack) 6
17 HEX. FLANGE SCREW M8 X 16 (6.000 per pack) 6
18 Lock Washer 8 mm 3
20 CONICAL SPRING WASHER M14 1
21 SPRING PIN M10 X 22 (3.000 per pack) 3
22 COTTER PIN (3.000 per pack) 3
23 SPRING PIN M3 X 30 (2.000 per pack) 2
24 Black Pop Rivet 3/16" 5
28 Pop Rivet 3/16" 2
30 CIRCLIP 2
31 CIRCLIP 1
34 AVEX RIVET (50.000 per pack) 2
35 AVEX RIVET (50.000 per pack) 2
38 SPRING YELLOW/GREEN Model-800 E-TEC 1
39 STOPPER WASHER (6.000 per pack) 6
41 RONDELLE *WASHER (6.000 per pack) 3
43 GUARD 1
46 Roller 2
49 Swivel Abutment 2
50 RONDELLE *WASHER 1
54 AJUST POULIE *PULLEY ADJUST 1
59 PIVOT STUD 2
60 SLIDING FLANGE ASS Y 1
62 CAM ASS Y 1
64 SPRING 1
66 FIX FLANGE ASS Y 1
77 SPRING SEAT 1
80 RAMP 414 Package-Enduro (3.000 per pack) 3
81 GOUPILLE *PIN (3.000 per pack) 3
83 LEVER 3
86 SPRING COVER ASS Y 1
89 ROLLER (3.000 per pack) 3
92 LEVER AXLE (3.000 per pack) 3
93 FIXED FLANGE ASS Y 1
96 SLIDER SHOE (6.000 per pack) 6
97 BUSHING 1
98 SLIDING FLANGE ASS Y 1
100 BUSHING 1
101 CALIBRATION SCREW (3.000 per pack) 3
102 GOVERNOR CUP ASS Y 1
104 RING GEAR 1
107 SIDE PROTECTOR 1
108 BELT GUARD 1
109 FRONT BELT GUARD BRACKET 1
110 REINFORCEMENT 1
111 GUIDE 1
112 COURROIE *DRIVE BELT 1
113 TRA 7 BOLT (M14 X 153.5 MM) 1
118 BELT GUARD BRACKET 1
119 BALL BEARING 1
120 PROTECTOR TUBE 25 MM - 210 MM 0
122 DECAL ENGLISH 1
124 RPM STICKER ENGLISH 1
125 SAFETY BELT GUARD DECAL 1
128 O-RING (6.000 per pack) 6
