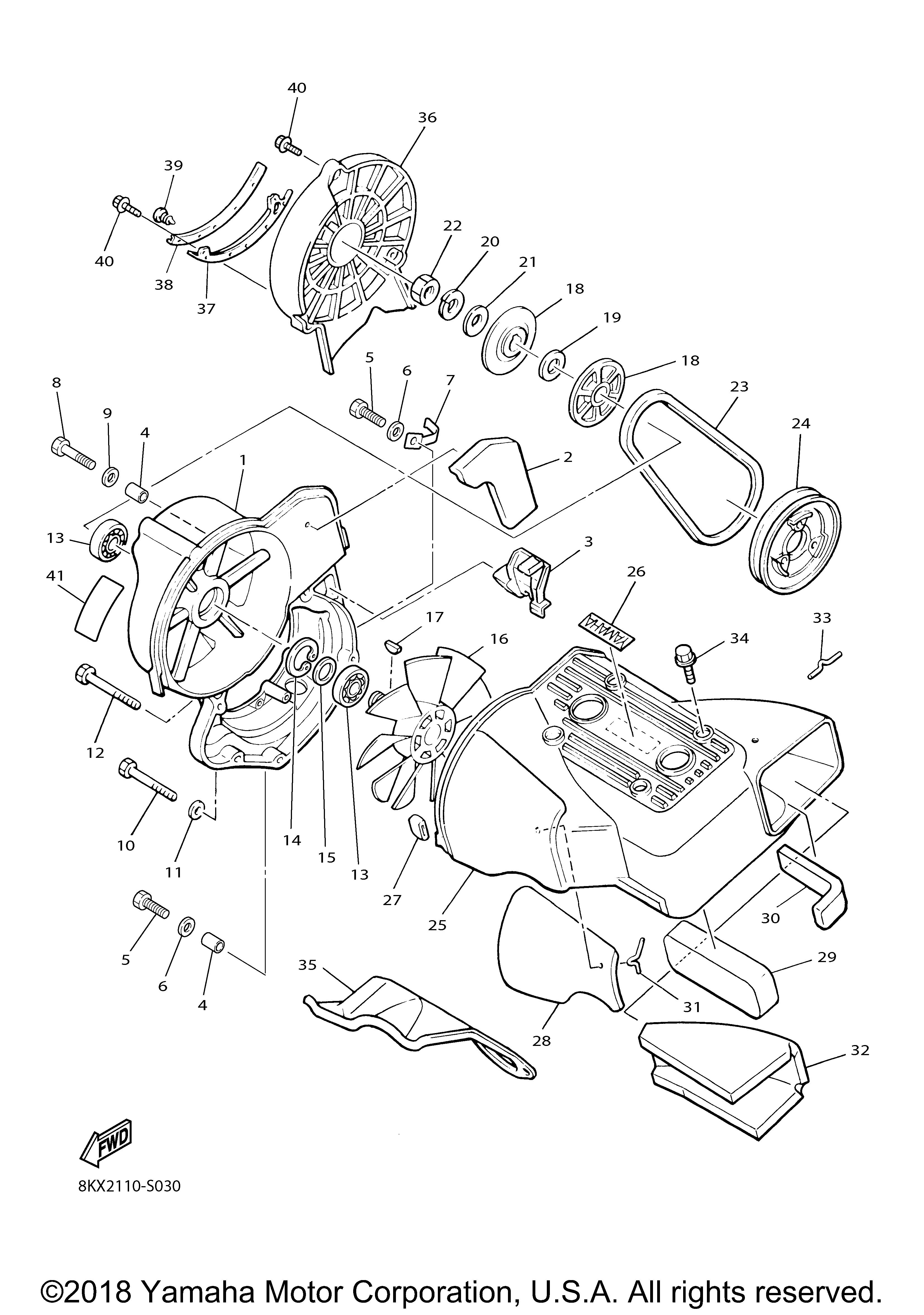

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CASE FAN | 1 | |
| 2 | DAMPERSHROUD 6 | 1 | |
| 3 | DAMPERAIR SHRD 1 | 1 | |
| 4 | PIN DOWEL | 2 | |
| 5 | BOLT | 2 | |
| 6 | WASHER (6TA) | 2 | |
| 7 | CLAMP | 1 | |
| 9 | WASHER (5 per pack) | 1 | |
| 13 | BEARING | 2 | |
| 14 | CIRCLIPR-TYPE | 1 | |
| 15 | WASHERPLATE | 1 | |
| 16 | FAN | 1 | |
| 17 | KEYWOODRUFF | 1 | |
| 18 | PULLEY 2 | 2 | |
| 19 | WASHERCLAW (1.0T) UR UN | 1 | |
| 19 | WASHERCLAW (0.5T) UR UN | 1 | |
| 20 | WASHER(JN5) | 1 | |
| 22 | NUT | 1 | |
| 23 | BELT | 1 | |
| 24 | PULLEY 1 | 1 | |
| 25 | AIR SHROUDCYL 1 | 1 | |
| 26 | EMBLEMYAMAHA(4BP) | 1 | |
| 27 | DAMPERAIR SHRD 1 | 2 | |
| 28 | DAMPERAIR SHRD 2 | 1 | |
| 29 | DAMPERAIR SHRD 4 | 1 | |
| 30 | DAMPERSHROUD 5 | 1 | |
| 31 | PINCOTTER | 3 | |
| 32 | DAMPERSHROUD 6 | 1 | |
| 34 | BOLTWITH WASHER | 4 | |
| 35 | AIR SHROUDCYL 2 | 1 | |
| 36 | COVERFAN CASE | 1 | |
| 37 | STAY 1 | 1 | |
| 38 | DAMPERDUCT 4 | 1 | |
| 39 | RIVET (8Y0) | 5 | |
| 40 | BOLTFLANGE | 3 | |
| 41 | LABEL WARNING 2 | 1 |
