Yamaha APEX LTX_GT RX10LTZW/RX10LTGTZL/RX10LTGTZB APEX LTX_GT RX10LTZW/RX10LTGTZL/RX10LTGTZB SKI

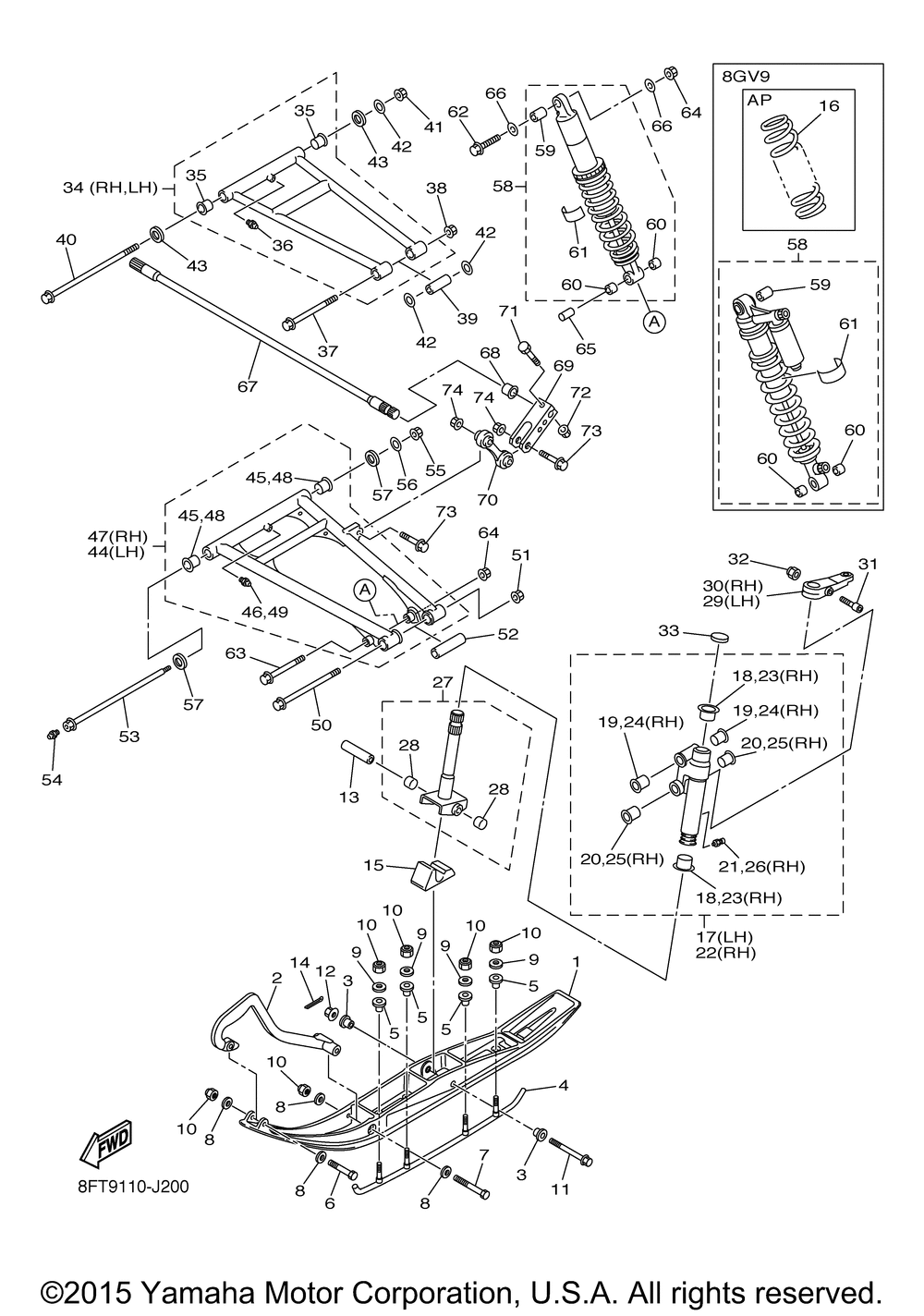

SKI
№ Наименование Примечание Кол-во
1 SKI 1 2
2 BLACK 8DM HANDLE PLA 0
2 BLUE 8DM HANDLE PLAS 0
3 COLLAR 1 4
5 BUSH SKI 1 8
6 BOLTHEXAGON 2
7 BOLT (83L) 2
8 WASHERPLATE 8
9 WASHER PLATE 8
10 NUTLOCK 12
11 BOLT FLANGE 2
12 NUTSELF-LOCKING 2
13 COLLAR 2
14 Шплинт 2
15 STOPPER 1 2
16 SPRING ASSY 1 (K=2.3 (K=2.3) AP 0
16 SPRING ASSY 1 (K=3.0 (K=3.0) AP 0
17 STEERING KNUCKLE ASS (LEFT) 8HE1 LTGTX 0
17 STEERING KNUCKLE ASS (LEFT) 0
18 BUSH SOLID 2
19 BUSH SOLID 2
20 BUSH SOLID 2
21 NIPPLEGREASE 1
22 STEERING KNUCKLE ASS (RIGHT) 8HE1 LTGTX 0
22 STEERING KNUCKLE ASS (RIGHT) 0
27 COLUMN SKI ASSY 2
28 BUSH BIMETAL FORMED 2
29 ARM OUTSIDE 1 1
30 ARM OUTSIDE 2 1
31 BOLT HEXAGON SOCKET 2
32 NUT SELF LOCKING 2
33 CAP CASE 2
34 FRONT UPPER ARM COMP UR FOR DPBMC 0
34 FRONT UPPER ARM COMP UR FOR YB 0
37 BOLT FLANGE 2
39 COLLAR 2
40 BOLT FLANGE 2
42 WASHER PLATE 6
43 WASHER 4
44 FRONT LOWER ARM COMP (LEFT) 0
44 FRONT LOWER ARM COMP (LEFT) UR FOR DPBMC 0
45 BUSH SOLID 2
47 FRONT LOWER ARM COMP (RIGHT) UR FOR DPBMC 0
47 FRONT LOWER ARM COMP (RIGHT) 0
50 BOLT FLANGE 2
51 NUTU FLANGE 2
52 COLLAR 2
53 BOLT UNION 2
58 ABSORBER ASSY 1 8HE1 LTGTX 0
58 ABSORBER ASSY 1 2
59 DAMPER BUSH B 1
60 BUSH BIMETAL FORMED 2
61 LABEL WARNING 1
62 BOLTWASHER BASED 2
63 BOLTWASHER BASED 2
65 COLLAR 2
67 BAR STABILIZER FRON 1
68 BUSH STABILIZER FRO 2
69 ARM STABILIZER 2
70 JOINT STABILIZER 1 2
71 BOLT 2
72 NUT-U 2
73 BOLTFLANGE 4
74 NUT U FLANGE 4
