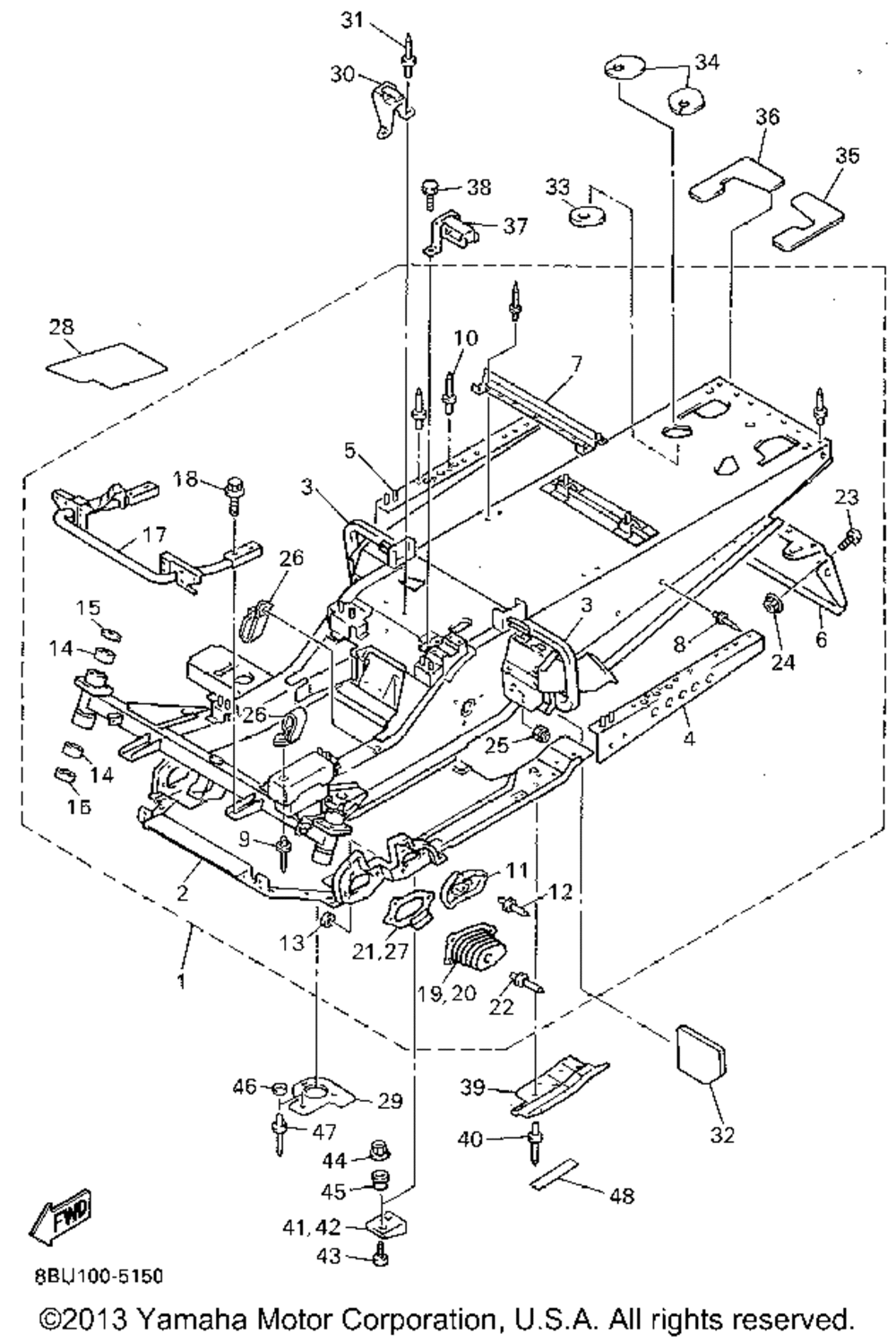

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME | 1 | |
| 2 | BELLY PAN | 1 | |
| 3 | RNFCMNTFR FOOTRST | 2 | |
| 4 | PATCH 4 | 1 | |
| 5 | PATCH 5 | 1 | |
| 6 | RNFCMNTFRAME REAR | 1 | |
| 7 | BRACKET SEAT | 1 | |
| 8 | RIVETBLIND | 4 | |
| 9 | RIVET BLIND | 39 | |
| 10 | . RIVET | 96 | |
| 11 | COVER 1 | 2 | |
| 12 | RIVETBLIND | 6 | |
| 13 | WASHER PLATE | 6 | |
| 14 | BUSH SOLID | 4 | |
| 15 | OIL SEAL | 2 | |
| 16 | OIL SEAL | 2 | |
| 17 | BUMPER FRONT 2 | 1 | |
| 18 | BOLT FLANGE (USA) | 4 | |
| 19 | COVER 1 | 1 | |
| 20 | COVER 3 | 1 | |
| 21 | WASHER 2 | 1 | |
| 22 | RIVETBLIND (4.8X18.7 BLACK) | 10 | |
| 23 | SCREWBINDING (USA) | 2 | |
| 24 | Гайка с фланцем | 2 | |
| 25 | NUTFLANGE | 4 | |
| 26 | CLAMP (51Y) | 3 | |
| 27 | WASHER 1 | 1 | |
| 28 | SHIELDHEAT | 1 | |
| 29 | SHIELDNOISE | 1 | |
| 30 | BRACKET 4 | 1 | |
| 31 | RIVETBLIND | 3 | |
| 32 | COVER 2 | 1 | |
| 33 | PATCH 5 | 2 | |
| 34 | PATCH 5 | 2 | |
| 35 | COVER 5 | 1 | |
| 36 | COVER 7 | 1 | |
| 37 | BRACKET 3 | 1 | |
| 38 | BOLT | 2 | |
| 39 | FRAME UNDER 1 | 1 | |
| 41 | PAD 1 | 1 | |
| 42 | PAD 2 | 1 | |
| 43 | SCREWWITH WASHER | 4 | |
| 44 | NUTFLANGE (4MV) | 4 | |
| 45 | COLLAR | 4 | |
| 46 | WASHER PLATE (90201-04325-00 ) | 3 | |
| 48 | TRIM LOWER | 1 |
