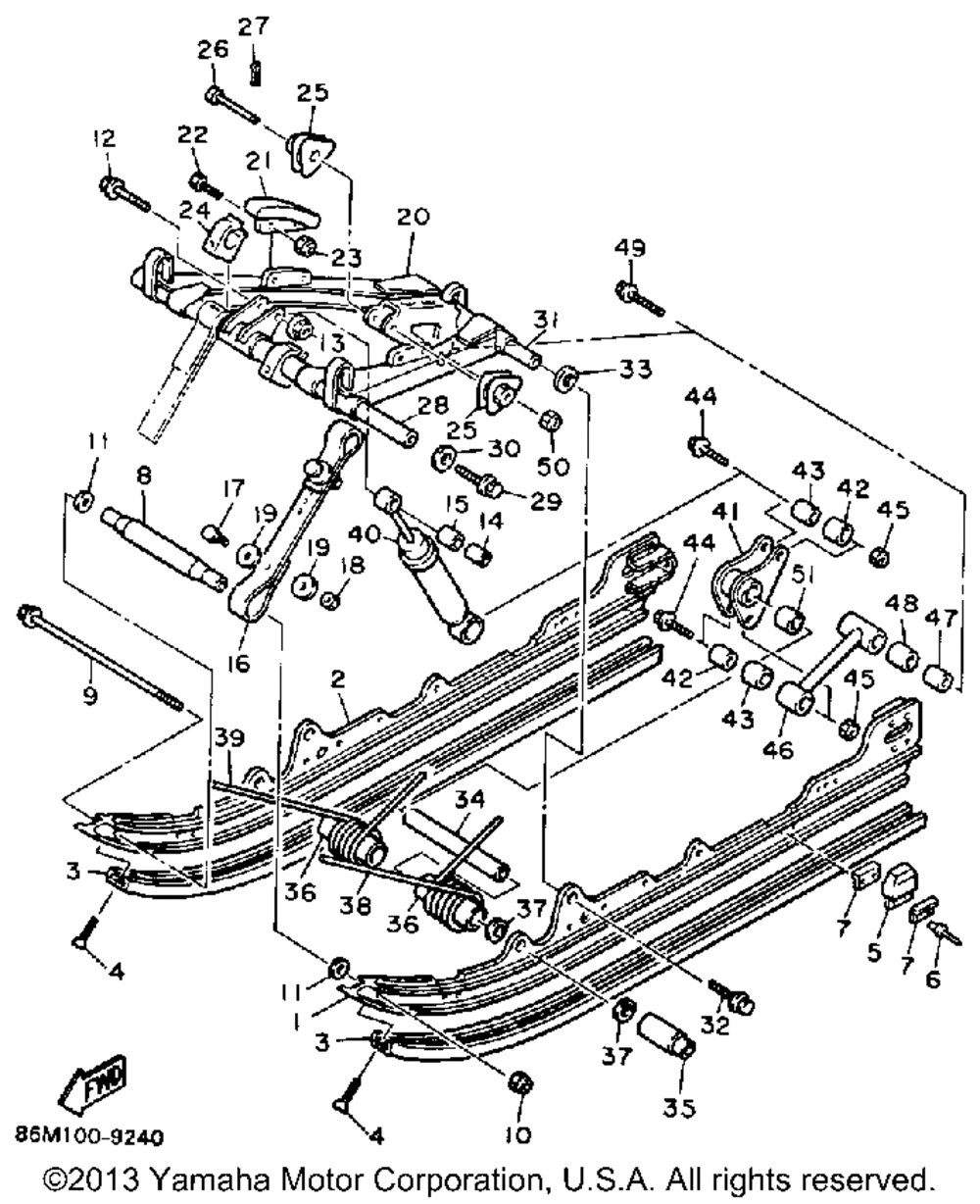

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME SLIDING 1 | 1 | |
| 2 | FRAME SLIDING 1 | 1 | |
| 3 | RUNNER SLIDING (82M-47421-00) | 2 | |
| 4 | )SCREW CROSSRECESS | 2 | |
| 5 | DAMPER 1 | 4 | |
| 6 | RIVETBLIND | 8 | |
| 7 | PLATEDAMPER | 8 | |
| 8 | BRACKET1 | 1 | |
| 9 | BOLT FLANGE | 1 | |
| 10 | NUT SELF LOCKING | 1 | |
| 11 | WASHER (5 per pack) | 2 | |
| 12 | BOLTFLANGE | 1 | |
| 13 | NUTLOCK | 1 | |
| 14 | COLLAR | 1 | |
| 15 | BUSHSOLID (USA) | 1 | |
| 16 | STOPPER 1 | 1 | |
| 17 | BOLTHEXAGON | 2 | |
| 18 | NUTFLANGE | 2 | |
| 19 | WASHERPLATE (5 per pack) | 4 | |
| 20 | ARMPIVOT 1 | 1 | |
| 21 | RUNNERSLIDING 2 | 2 | |
| 24 | HOOK 2 (USA) | 2 | |
| 25 | HOOK 3 | 2 | |
| 26 | PINCLEVIS (90240-12107-00) | 1 | |
| 27 | PINCOTTER (5 per pack) | 1 | |
| 28 | SHAFT 1 | 1 | |
| 29 | BOLT | 2 | |
| 30 | WASHERPLATE | 2 | |
| 31 | SHAFT 3 | 1 | |
| 32 | BOLTFLANGE | 2 | |
| 33 | COLLAR | 2 | |
| 34 | COLLAR AP (USA) | 1 | |
| 35 | COLLAR AP (USA) | 2 | |
| 36 | COLLAR | 2 | |
| 37 | WASHERPLATE (USA) | 4 | |
| 38 | SPRINGFRONT .1 | 1 | |
| 39 | SPRINGFRONT .2 | 1 | |
| 40 | SHOCK ABSORBER 2 | 1 | |
| 41 | BRACKET 4 | 1 | |
| 42 | COLLAR | 2 | |
| 43 | BUSHSOLID (USA) | 2 | |
| 44 | BOLTFLANGE | 2 | |
| 45 | NUTSELF-LOCKING | 2 | |
| 46 | JOINT | 1 | |
| 47 | COLLAR | 1 | |
| 48 | BUSH | 1 | |
| 49 | BOLT FLANGE | 1 | |
| 51 | BUSHPIVOT | 1 |
