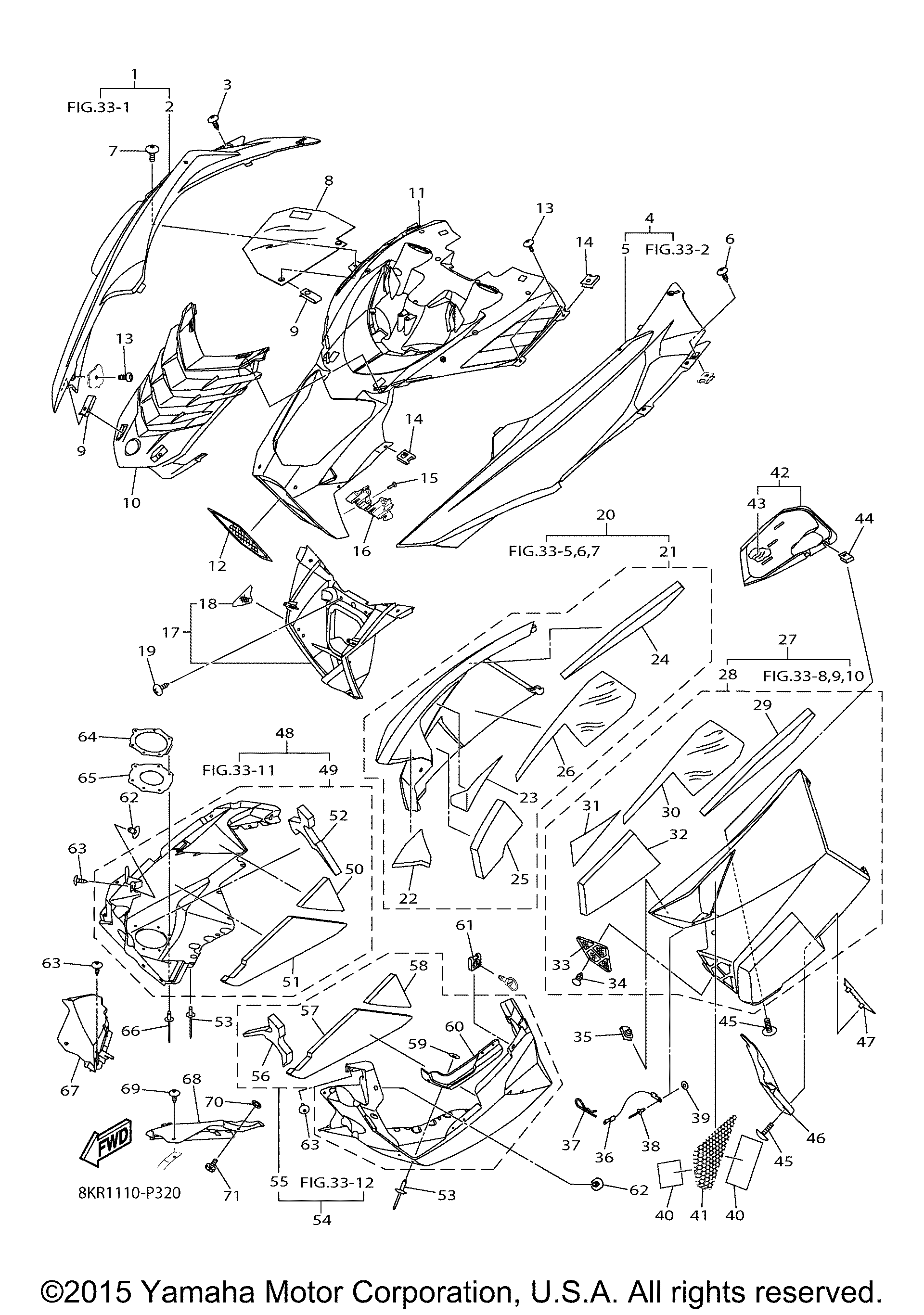

Yamaha SRVIPER X TX LE (SR10XLFO) SRVIPER X TX LE (SR10XLFO) SHROUD
SHROUD
№ Наименование Примечание Кол-во
1 HOOD ASSY 4 1
2 HOOD 4 1
3 SCREW 10-12X3/4 (5 per pack) 3
4 HOOD ASSY 3 1
5 HOOD 3 1
7 SCREW 10-12X1.00 (5 per pack) 2
8 SHIELD HEAT 1
9 NUT CLIP 10 (6 per pack) 4
10 PANEL CONSOLE 1 1
11 SHROUD 1
12 GRILL FRONT 1
13 SCREWSELF TAP-TSTRH (10 per pack) 4
14 NUT CLIP 10 (2 per pack) 4
15 SCREW 13 (6 per pack) 2
16 BRACKET 1 1
17 DUCT INTAKE 1
18 TAPE REFLECTOR 2
19 SCREWSELF TAP-TXSTR (5 per pack) 4
20 SIDE PANEL COMP.(R (R.H) 1
21 SHELL SIDE PANEL ASS UR FOR DPBSE 1
22 DAMPER NOISE 17 1
23 PROTECTOR 1 1
24 DAMPER NOISE 19 1
25 DAMPER NOISE 18 1
26 PROTECTOR 2 1
27 SIDE PANEL COMP.(L (L.H) 1
28 SHELL SIDE PANEL ASS UR FOR DPBSE 1
29 DAMPER NOISE 13 1
30 DAMPER NOISE 14 1
31 DAMPER NOISE 15 1
32 DAMPER NOISE 16 1
33 SCREEN 1
34 RIVET 1 (5 per pack) 8
35 NUT CLIP M5 (4 per pack) 1
36 WIRE 2
37 CLIP 5 (5 per pack) 2
38 RIVET 6 (20 per pack) 2
39 WASHER 8X0.375X0. (20 per pack) 2
40 TAPEALUM FOIL - 6" UN 2
41 TAPE5 1
42 DUCT 1
43 PROTECTOR 3 1
46 DEFLECTOR 1 1
47 DEFLECTOR 2 1
48 HOOD 2 1
49 HOOD 4 1
50 PROTECTOR 4 1
51 PROTECTOR 5 1
52 PROTECTOR 6 1
53 RIVET 14 (10 per pack) 21
54 HOOD 1 1
55 HOOD 3 1
56 PROTECTOR 1 1
57 PROTECTOR 2 1
58 PROTECTOR 3 1
59 WASHERFLAT .194X.50 (4 per pack) 3
60 REINFORCEMENT 1 1
61 NUT CLIP 1/4 2
62 RIVET 4 (2 per pack) 2
64 PLATE 1 1
65 SEAL EXT. 1 1
66 RIVET 21 6
67 PATCH 2 1
68 PATCH 1 1
70 NUT 3/16 (4 per pack) 1
71 SCREW THUMB M5X0.8X (4 per pack) 1
