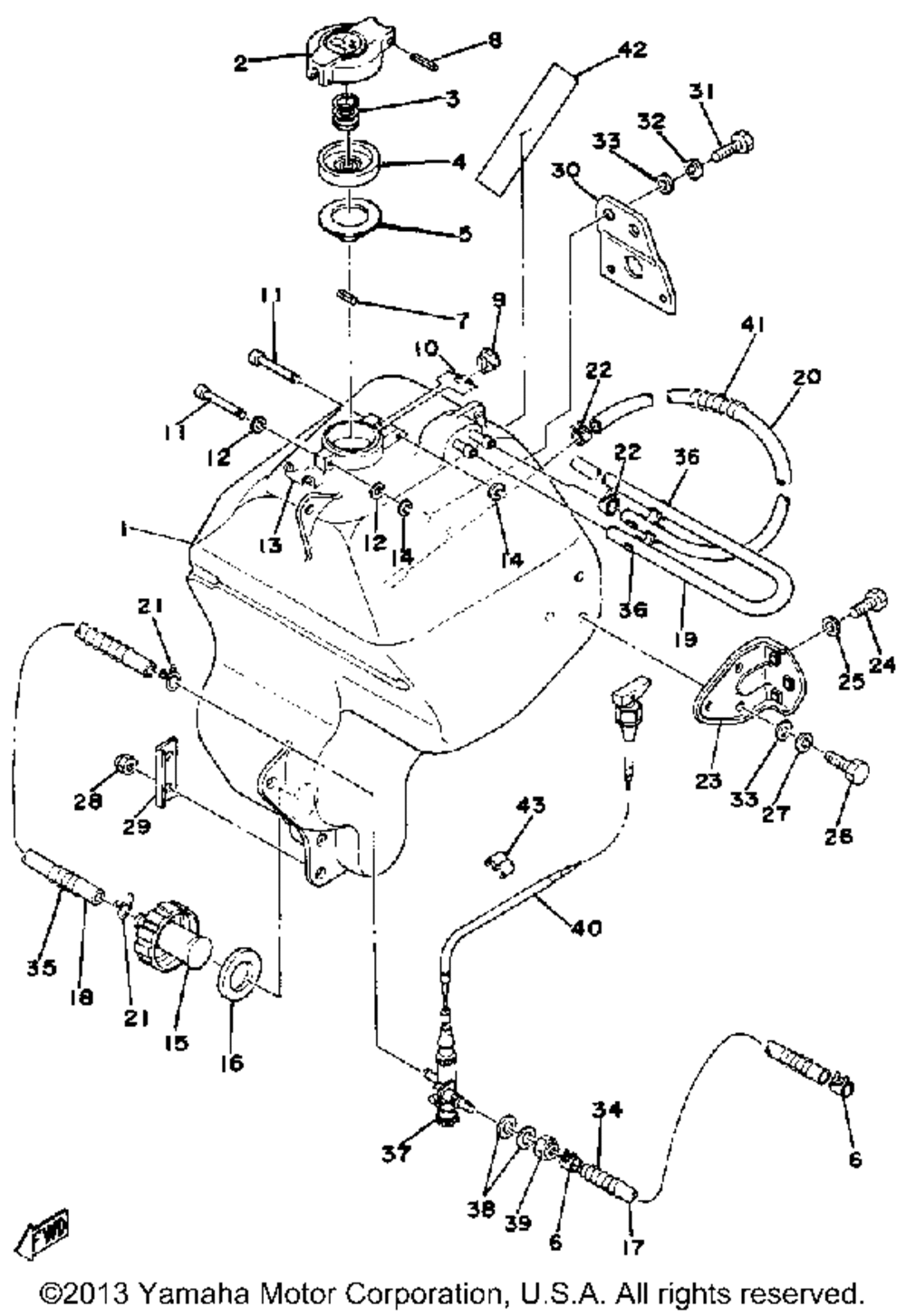

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 2 | BODYCAP | 1 | |
| 3 | SPRINGCOMPRESSION | 1 | |
| 4 | DISCCAP | 1 | |
| 5 | GASKET CAP 1 | 1 | |
| 6 | CLIPSCISSOR | 2 | |
| 7 | PINSPRING | 1 | |
| 8 | PINSPRING | 1 | |
| 9 | HOOK | 1 | |
| 10 | SPRINGTORSION (813-24637-00) | 1 | |
| 11 | PINSPEC'L SHAPE | 2 | |
| 12 | WASHERPLATE | 2 | |
| 13 | SPRINGTORSION | 1 | |
| 14 | CIRCLIPE-TYPE | 2 | |
| 15 | FILTER ASSY | 1 | |
| 16 | GASKET | 1 | |
| 17 | HOSE | 1 | |
| 18 | HOSE (815-24312-00) | 1 | |
| 19 | TUBE FLEXIBLE (L970) | 1 | |
| 20 | TUBE FLEXIBLE (90446-09079) | 1 | |
| 21 | CLIPSCISSOR | 2 | |
| 22 | CLIPSCISSOR FOR CAL | 2 | |
| 24 | BOLT HEX | 3 | |
| 25 | WASHERCONICAL SPR | 3 | |
| 26 | BOLT (661) | 3 | |
| 27 | WASHERSPRING | 3 | |
| 28 | NUTLOCK | 2 | |
| 33 | WASHERPLATE | 5 | |
| 35 | PROTECTORPIPE | 1 | |
| 37 | FUEL COCK ASSY | 1 | |
| 38 | WASHERPLATE | 2 | |
| 39 | NUTSELF-LOCKING | 1 | |
| 40 | LEVERFUEL CHANGE | 1 | |
| 41 | SPRINGCOMPRESSION | 1 | |
| 43 | CLIP | 1 |
