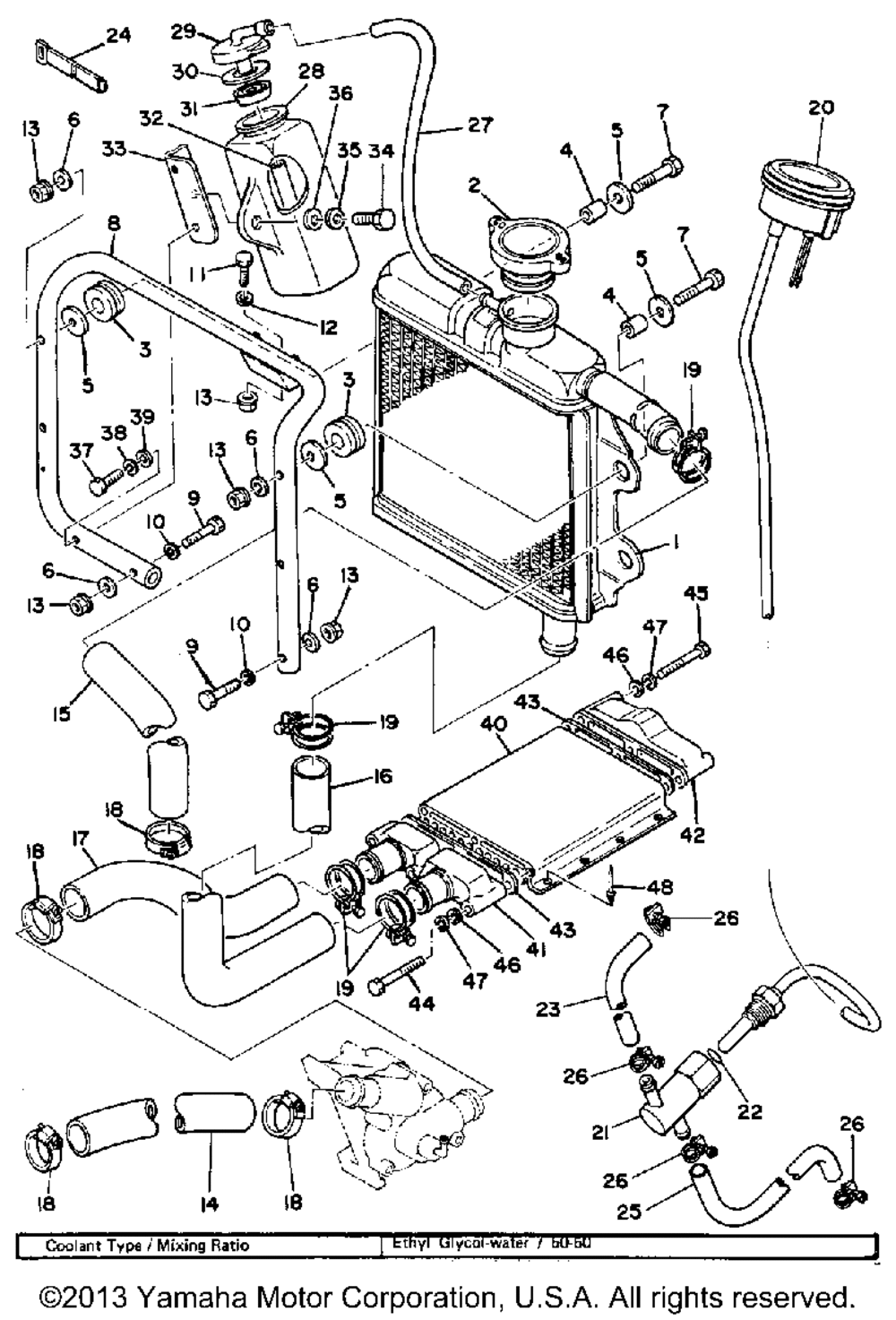

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | RADIATOR ASY | 1 | |
| 2 | CAPRADIATOR | 1 | |
| 3 | GROMMET | 4 | |
| 4 | COLLAR | 4 | |
| 5 | WASHERPLATE | 8 | |
| 6 | WASHER PLATE | 6 | |
| 7 | BOLT (661) | 4 | |
| 9 | BOLTHEXAGON | 2 | |
| 10 | WASHER (5 per pack) | 2 | |
| 11 | BOLT HEX | 1 | |
| 12 | WASHER (5 per pack) | 1 | |
| 13 | NUTFLANGE | 5 | |
| 14 | PIPE 1 | 1 | |
| 15 | PIPE 2 | 1 | |
| 18 | CLAMPHOSE | 4 | |
| 19 | HOSE CLAMP ASSY | 4 | |
| 20 | WATER TEMP METER | 1 | |
| 21 | JOINT | 1 | |
| 22 | O-RING | 1 | |
| 24 | BANDSWITCH CORD | 1 | |
| 26 | CLIPSCISSOR | 4 | |
| 27 | HOSE | 1 | |
| 28 | TANKRECOVERY | 1 | |
| 29 | CAP | 1 | |
| 30 | GASKETCAP | 1 |
