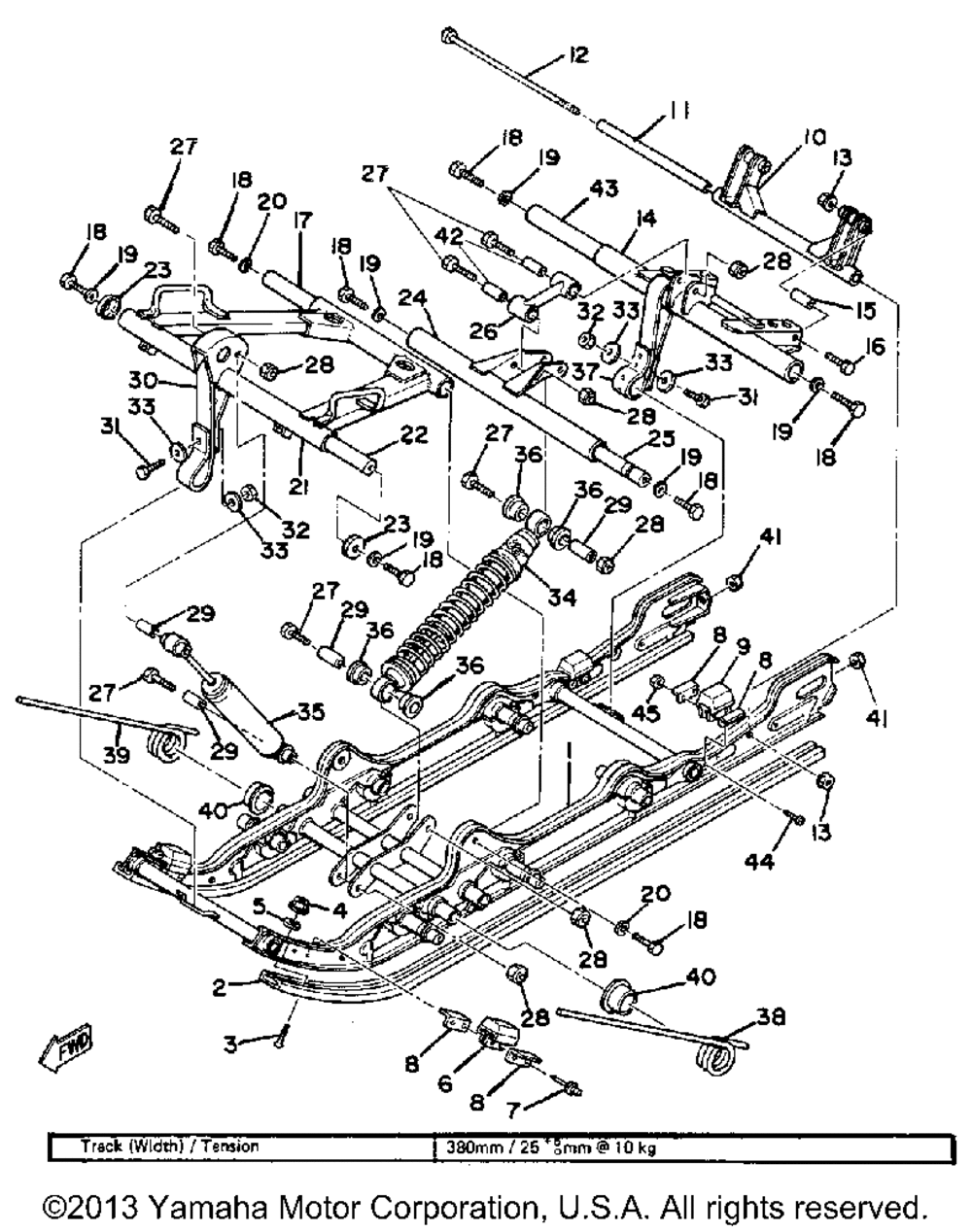

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME SLIDING | 1 | |
| 2 | RUNNERSLIDING 1 | 2 | |
| 3 | SCREWFLAT HEAD | 2 | |
| 4 | NUTLOCK | 2 | |
| 5 | WASHER | 2 | |
| 6 | DAMPER 2 | 2 | |
| 7 | RIVETBLIND | 4 | |
| 8 | PLATEDAMPER | 8 | |
| 9 | DAMPER 1 | 2 | |
| 11 | COLLAR (USA) | 1 | |
| 12 | BOLTHEXAGON (97101-08245) | 1 | |
| 14 | ARMPIVOT 2 | 1 | |
| 15 | COLLAR | 2 | |
| 16 | BOLT | 2 | |
| 17 | SHAFT 3 (USA) | 1 | |
| 18 | BOLT (8J7) (8J7) (97303-10030-00) | 8 | |
| 19 | WASHER TTH | 6 | |
| 20 | WASHERSPRING (5 per pack) | 2 | |
| 20 | WASHERSPRING (5 per pack) | 2 | |
| 21 | ARMPIVOT 1 | 1 | |
| 22 | SHAFT 1 | 1 | |
| 23 | SPACER | 2 | |
| 24 | BRACKET 5 | 1 | |
| 25 | SHAFT 2 | 1 | |
| 26 | BRACKET 6 | 1 | |
| 30 | STOPPER 1 | 1 |
