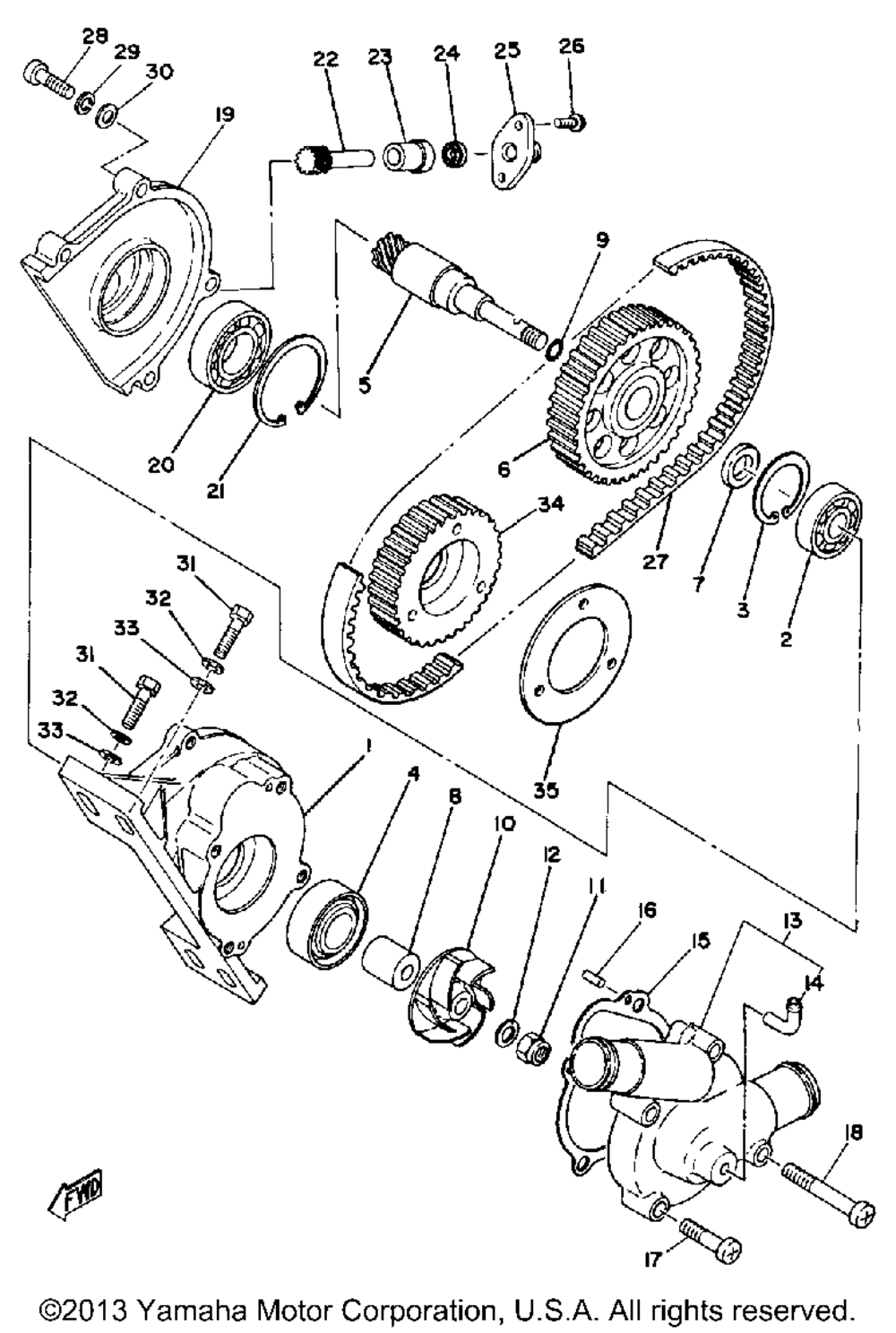

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 2 | BEARING | 1 | |
| 3 | CIRCLIP | 1 | |
| 4 | OIL SEALSW-TYPE | 1 | |
| 5 | SHAFTIMPELLER | 1 | |
| 7 | COLLAR | 1 | |
| 8 | COLLAR | 1 | |
| 9 | O-RING | 1 | |
| 10 | IMPELLERWATER PMP | 1 | |
| 11 | NUT SELF-LOCKING | 1 | |
| 12 | WASHERPLATE | 1 | |
| 14 | PIPEBREATHER | 1 | |
| 15 | GASKETHSNG CVR 1 | 1 | |
| 16 | PINDOWEL (5 per pack) | 2 | |
| 17 | SCREW PAN HEAD | 3 | |
| 18 | SCREW PAN HEAD | 1 | |
| 20 | BEARING | 1 | |
| 21 | CIRCLIP | 1 | |
| 22 | GEARDRIVEN | 1 | |
| 23 | BUSHDRVN GR OUTER | 1 | |
| 24 | OIL SEAL SO-TYPE | 1 | |
| 25 | CAP HOUSING | 1 | |
| 26 | SCREW PAN HEAD | 2 | |
| 27 | BELT 1 | 1 | |
| 28 | SCREWPAN HEAD | 4 | |
| 29 | WASHER (5 per pack) | 4 | |
| 30 | WASHER PLATE | 4 | |
| 31 | BOLT HEXAGON | 4 | |
| 33 | WASHERPLATE | 4 | |
| 34 | PULLEY 1 | 1 | |
| 35 | WASHER | 1 |
