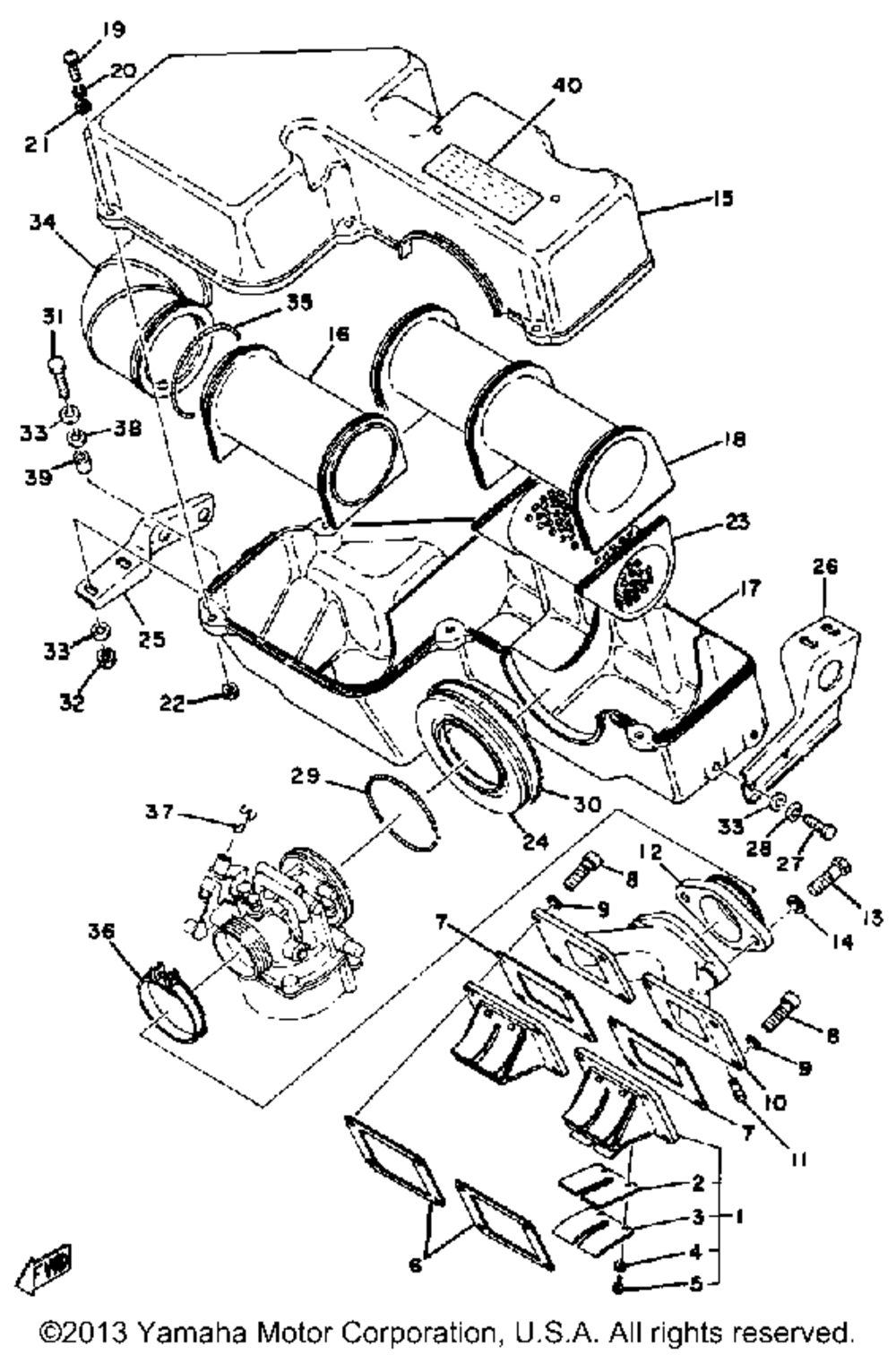

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REED VALVE ASSY | 2 | |
| 2 | REEDVALVE (1L8-13613-00-00) | 4 | |
| 3 | STOPPER REED VALVE | 4 | |
| 4 | WASHERSPRING | 8 | |
| 5 | SCREWPAN HEAD (5 per pack) | 8 | |
| 6 | GASKETVALVE SEAT | 2 | |
| 7 | GASKET | 2 | |
| 8 | BOLT HEXAGON SOCKET HEAD | 8 | |
| 9 | WASHER PLATE | 8 | |
| 11 | NOZZLE | 2 | |
| 12 | MANIFOLDINTAKE | 1 | |
| 13 | BOLT (1NV) | 2 | |
| 14 | WASHER (5 per pack) | 2 | |
| 15 | SILENCERINTAKE 1 | 1 | |
| 16 | PIPE | 1 | |
| 17 | SILENCERINTAKE 2 | 1 | |
| 19 | SCREWPANHEAD(4MY | 6 | |
| 20 | WASHERSPRING (5 per pack) | 6 | |
| 21 | WASHER PLATE | 6 | |
| 22 | NUT | 6 | |
| 24 | JOINTAIR CLNR 1 | 1 | |
| 27 | BOLT (661) | 4 | |
| 28 | WASHER (5 per pack) | 4 | |
| 29 | SPRINGTENSION | 1 | |
| 30 | SPRINGTENSION | 1 | |
| 31 | BOLT HEXAGON | 2 | |
| 32 | NUT S/L | 2 | |
| 33 | WASHER (5 per pack) | 4 | |
| 34 | PIPESUCTION 1 | 1 | |
| 36 | CLAMPHOSE | 1 | |
| 37 | CLAMPTHROTTLE | 1 | |
| 38 | WASHER PLATE | 2 | |
| 39 | COLLAR (90387-066J9) | 2 | |
| 40 | LABELCAUTION | 1 |
