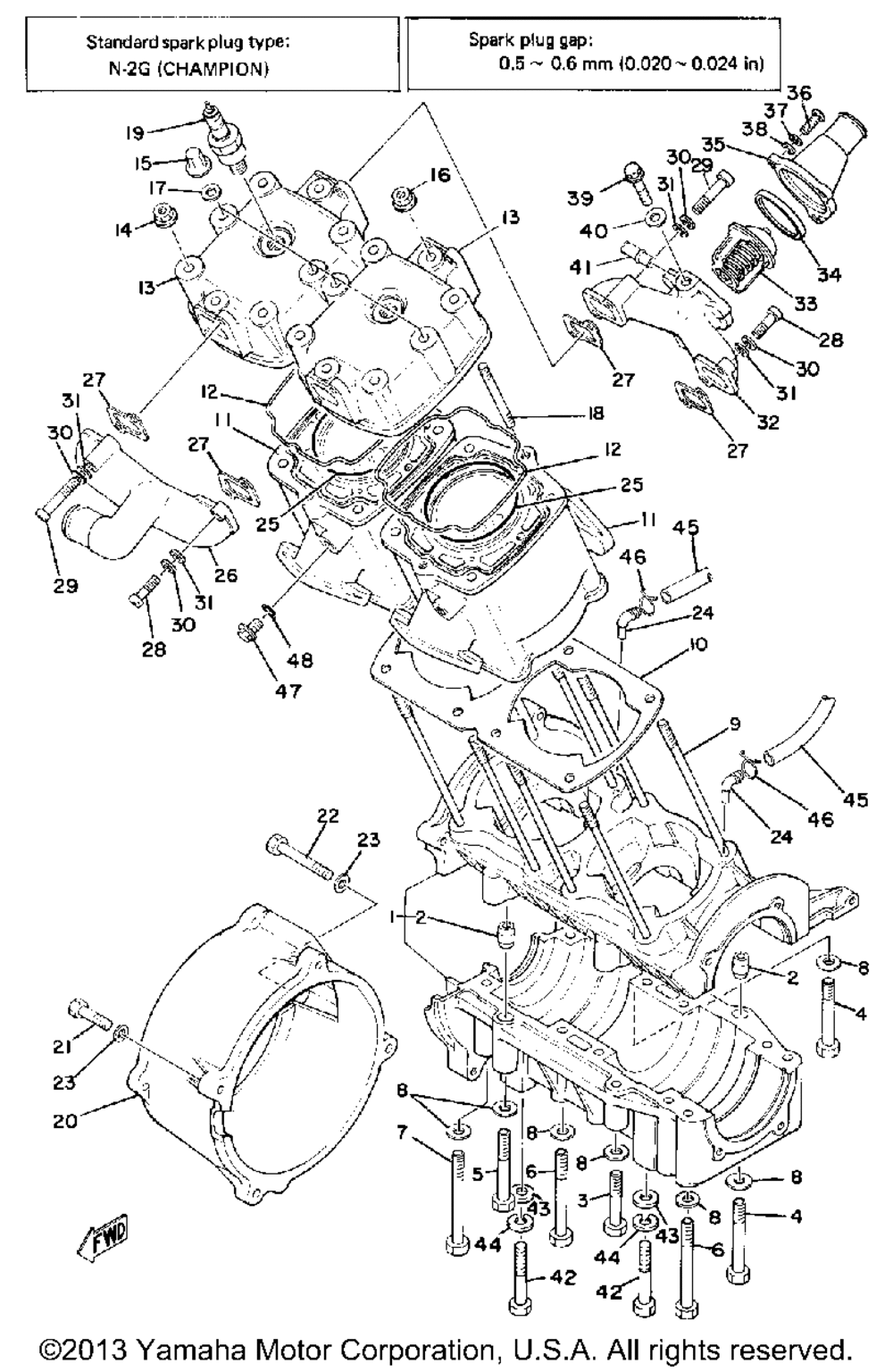

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKCASE ASY | 1 | |
| 2 | PINDOWEL | 2 | |
| 3 | BOLTHEX | 1 | |
| 4 | BOLT (661) | 2 | |
| 5 | BOLT FLAT HEAD | 1 | |
| 6 | BOLT | 8 | |
| 7 | BOLT | 2 | |
| 8 | WASHERPLATE | 14 | |
| 9 | BOLTCYL HOLDING 1 | 8 | |
| 10 | GASKET CYLINDER | 1 | |
| 11 | CYLINDER 1 | 2 | |
| 12 | GASKETCYL HEAD 1 | 2 | |
| 14 | NUTCROWN | 8 | |
| 15 | NUTSPEC'L SHAPE | 4 | |
| 16 | Гайка с фланцем | 4 | |
| 17 | WASHERPLATE | 4 | |
| 18 | BOLTSTUD | 8 | |
| 19 | BR9EIX NGK 4PK (NGK B9EV) (4 per pack) | 2 | |
| 20 | COVERCRANKCASE R | 1 | |
| 21 | BOLTHEXAGON | 3 | |
| 22 | BOLT (661) | 1 | |
| 23 | WASHER PLATE | 4 | |
| 24 | PIPEJOINT | 2 | |
| 25 | O-RING | 2 | |
| 27 | GASKET MANIFOLD | 4 | |
| 28 | SCREWPAN HEAD | 4 | |
| 29 | SCREWPAN HEAD | 4 | |
| 30 | WASHER (5 per pack) | 8 | |
| 33 | THERMOSTAT | 1 | |
| 34 | SEALTHERMOSTAT | 1 | |
| 35 | COVERTHERMOSTAT | 1 | |
| 36 | SCREWPAN HEAD (USA) (5 per pack) | 3 | |
| 39 | BOLT FLANGE | 1 | |
| 41 | JOINT | 1 | |
| 42 | BOLT (8J7) (8J7) (97303-10030-00) | 4 | |
| 43 | WASHER PLATE | 4 | |
| 44 | WASHERSPRING (5 per pack) | 4 | |
| 45 | HOSE | 2 | |
| 46 | CLIP | 4 | |
| 47 | BOLTWASHER BASED (95801-10014-00) | 2 | |
| 48 | O-RING (1.6-10.6) | 2 |
