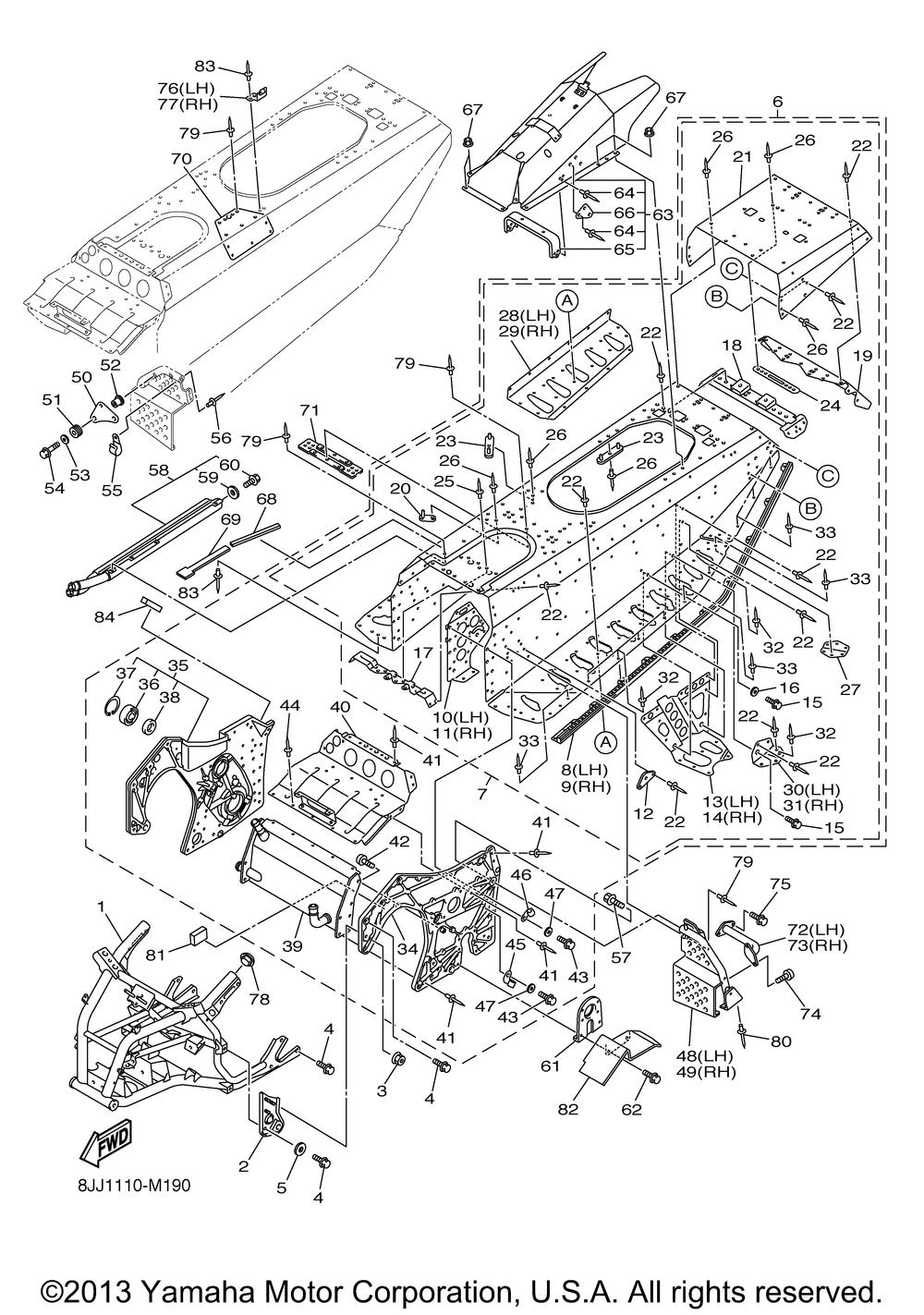

Yamaha FX NYTRO XTX 1.75 FX10XT75EL/FX10XT75EB FX NYTRO XTX 1.75 FX10XT75EL/FX10XT75EB FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BRACKET ENGINE 1
3 NUTSELF-LOCKING 3
4 BOLTFLANGE (JN5) 12
5 WASHERPLATE 1
6 REAR FRAME COMP. 1
7 REAR FRAME COMP. 1
8 REINFORCEMENT FOOTR 1
9 REINFORCEMENT FOOTR 1
10 BRACKET MAIN TRACK 1
11 BRACKET MAIN TRACK 1
12 BRACKET MAIN TRACK 2
13 BRACKET RR.TRACK SU 1
14 BRACKET RR.TRACK SU 1
15 BOLT FLANGE 4
16 WASHER PLATE 2
17 PROTECTOR MUFFLER 1
18 BRACKET 7 1
19 REINEFORCEMENT FRAM 1
20 BRACKET FUEL TANK 2
21 PANEL SUB FRAME 6 1
22 RIVET BLIND (4.7X16.4 YELLOW) 1
23 BRACKET 8 4
24 NUT 1
25 RIVET BLIND (4.8X12 YELLOW) 6
26 RIVET BLIND (4.8X12.1 YELLOW) 55
27 PATCH 1 2
28 PATCH 3 1
29 PATCH 4 1
30 PATCH 5 1
31 PATCH 6 1
32 RIVET BLIND (4.8X17 YELLOW) 14
33 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 18
34 REINF. HOUSING 1 1
35 HOUSING REINF SUB-A (R.H) 1
36 BEARING 1
37 CIRCLIP 54G 1
38 OIL SEAL 1
39 HEAT EXCHANGER ASSY 1
40 PANEL SUB FRAME 4 1
42 BOLT BUTTON HEAD 2
43 BOLT 8
45 CLAMP 1
46 CLAMP 1
47 WASHERPLATE 8
48 FOOTREST COMP. 1 1
49 FOOTREST COMP. 2 1
50 STAY BUZZER 1
51 GROMMET 2
52 COLLAR 2
53 WASHERPLATE 2
54 BOLTFLANGE 2
55 CLAMP 1
57 BOLTFLANGE 2
58 HEAT EXCHANGER ASSY AP 1
59 WASHERSEAL 1
60 BOLT(3JP) 1
61 HOUSING REINF SUB-A (L.H) 1
62 BOLT FLANGE 2
63 PANEL SUB FRAME 5 1
65 STAY MUFFER 1
66 BRACKET SEAT FITTIN 2
67 NUT CROWN 8
68 SEAL GUARD 2
69 SEAL GUARD 2
70 PATCH 7 2
71 PATCH 8 1
72 BAR FOOTREST 1 1
73 BAR FOOTREST 2 1
74 BOLT BUTTON HEAD 4
75 BOLT FLANGE 4
76 BRACKET REAR FENDER 1
77 BRACKET REAR FENDER 1
78 CAP 2
80 RIVET BLIND 4
81 DAMPER 1
82 PROTECTOR FRAME 1
84 DAMPER PLATE 1
