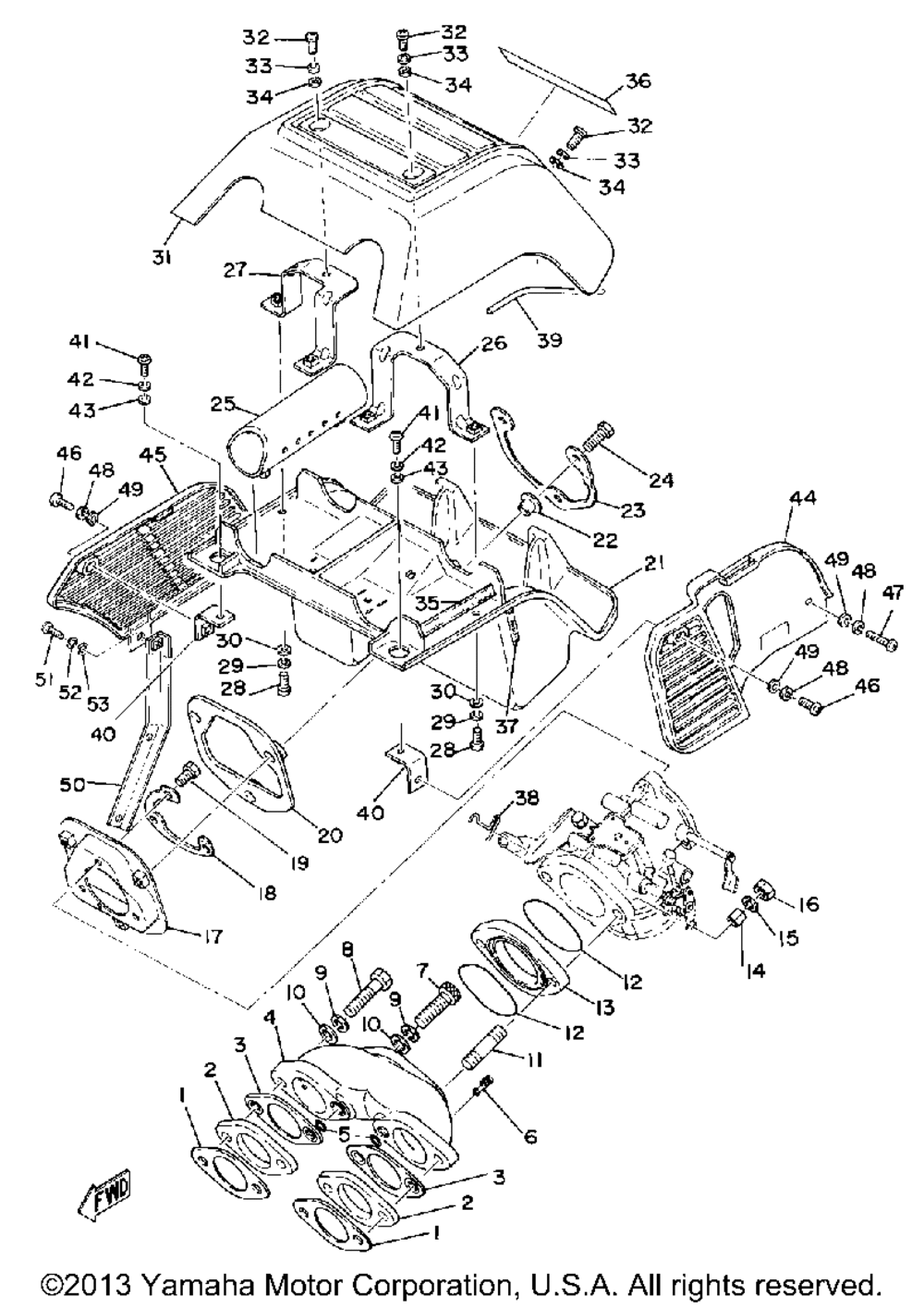

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GASKET MANIFOLD | 2 | |
| 2 | MANIFOLDINTAKE | 2 | |
| 3 | GASKET | 2 | |
| 5 | O-RING | 2 | |
| 6 | NOZZLE | 2 | |
| 7 | BOLTSOCKET | 2 | |
| 8 | BOLT (661) | 2 | |
| 9 | WASHERSPRING | 4 | |
| 10 | WASHER (5 per pack) | 4 | |
| 12 | O-RING | 2 | |
| 13 | JOINTCARBURETOR | 1 | |
| 16 | NUT | 2 | |
| 18 | WASHER | 1 | |
| 19 | BOLT (661) | 3 | |
| 22 | COLLAR | 3 | |
| 24 | BOLT (GA1) (5 per pack) | 3 | |
| 28 | SCREWPAN HEAD (10 per pack) | 4 | |
| 29 | WASHERSPRING (5 per pack) | 4 | |
| 30 | WASHER PLATE | 4 | |
| 32 | SCREWBINDING | 4 | |
| 33 | WASHER(3SX) | 4 | |
| 34 | WASHER | 4 | |
| 38 | CLAMPTHROTTLE | 1 | |
| 41 | SCREW PAN HEAD | 2 | |
| 44 | LOUVER 1 | 1 | |
| 45 | LOUVER 2 | 1 | |
| 46 | . . ELECTRONIC SIREN ASS'Y | 3 | |
| 47 | SCREWPAN HEAD | 1 | |
| 53 | WASHER PLATE | 1 |
