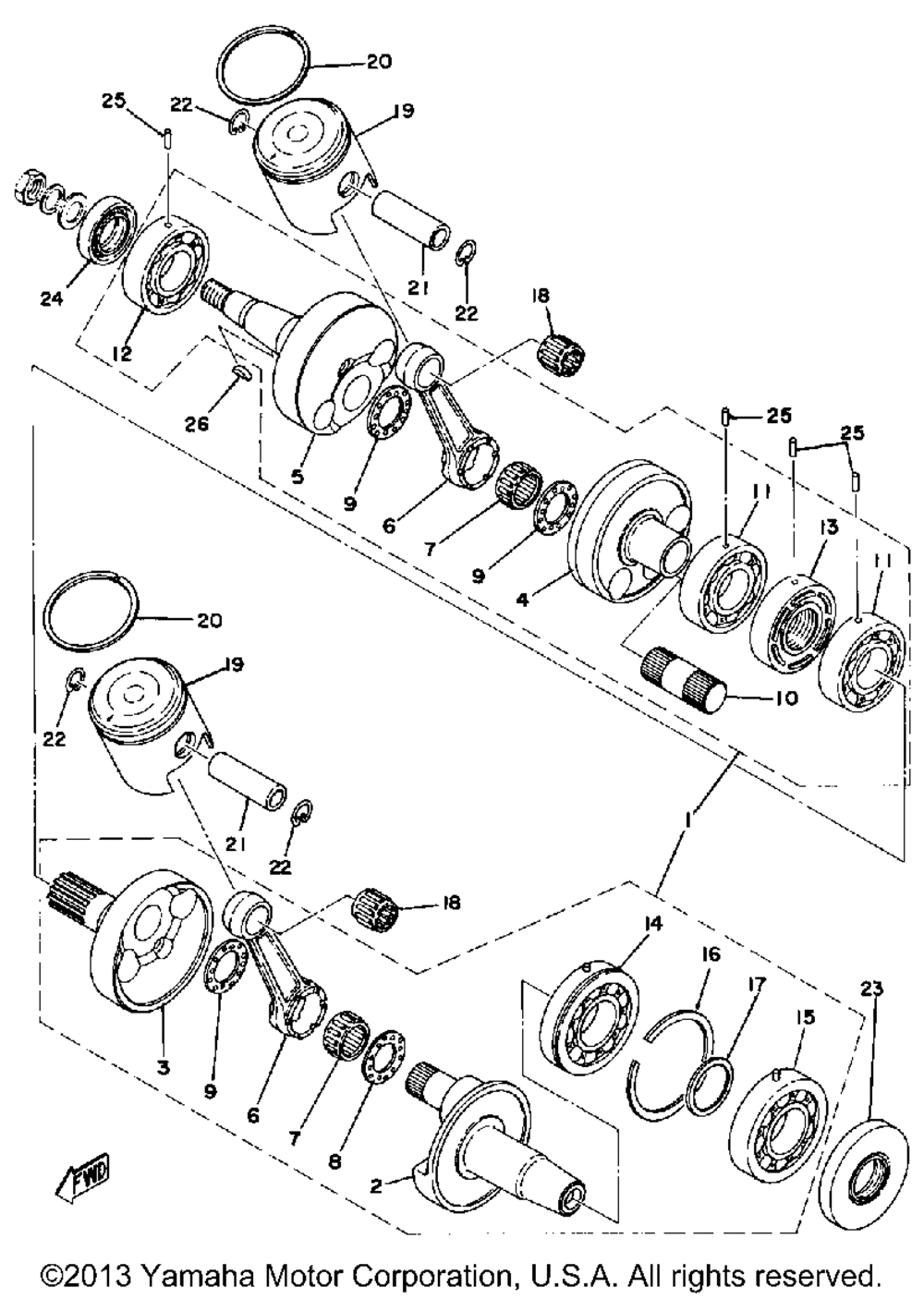

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKSHAFT ASY | 1 | |
| 3 | CRANK 2 | 1 | |
| 4 | CRANK 3 | 1 | |
| 5 | CRANK 4 | 1 | |
| 6 | RODCONNECTING | 2 | |
| 7 | BEARINGCYL.tahos_10 | 2 | |
| 8 | WASHERCRANK PIN | 1 | |
| 9 | WASHERSPEC'L SHAP | 3 | |
| 11 | BEARING | 2 | |
| 13 | SEALLABYRINTH 1 | 1 | |
| 14 | BEARING (B6306) | 1 | |
| 16 | CIRCLIPOUTER | 1 | |
| 17 | WASHERPLATE | 1 | |
| 18 | BEARINGCYL.tahos_10 | 2 | |
| 19 | PISTON STD (8A7-11631-00-96) | 2 | |
| 19 | PISTON STD | 2 | |
| 20 | RINGPISTON STD | 2 | |
| 20 | RINGPISTON STD | 2 | |
| 21 | PINPISTON | 2 | |
| 22 | CIRCLIPINNER (371-11634-00) (5 per pack) | 4 | |
| 23 | OIL SEALSW-TYPE | 1 | |
| 24 | OIL SEALSW-TYPE | 1 | |
| 25 | PINDOWEL (5 per pack) | 4 | |
| 26 | KEYWOODRUFF | 1 |
