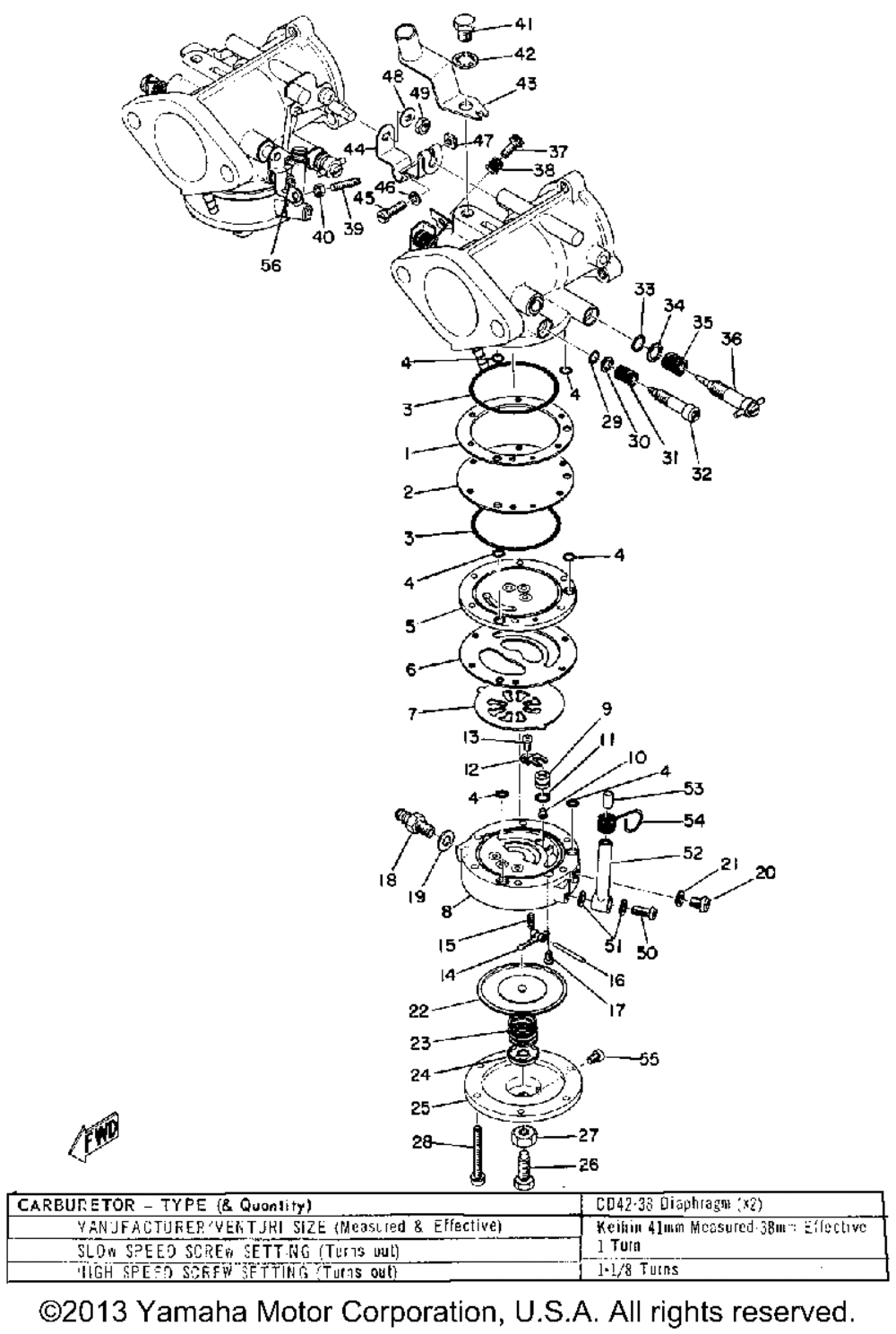

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GASKET | 2 | |
| 2 | DIAPHRAGMPUMP | 2 | |
| 3 | O-RING | 4 | |
| 4 | O-RING | 12 | |
| 7 | VALVECHECK | 2 | |
| 10 | PINFLOAT | 2 | |
| 11 | O-RING | 2 | |
| 13 | SCREWPAN HEAD (5 per pack) | 2 | |
| 15 | SPRING | 2 | |
| 17 | . .SCREW COUNTERSUNK | 2 | |
| 21 | WASHER | 2 | |
| 22 | DIAPHRAGM | 2 | |
| 26 | SCREWSTOP | 2 | |
| 27 | NUT | 2 | |
| 29 | O-RING | 2 | |
| 30 | WASHER | 2 | |
| 32 | SCREWADJUST | 1 | |
| 33 | O-RING | 2 | |
| 34 | WASHER | 2 | |
| 41 | BOLT (5 per pack) | 1 | |
| 46 | WASHER (5 per pack) | 1 | |
| 49 | NUT (5 per pack) | 1 | |
| 50 | SCREW | 2 | |
| 51 | WASHER | 4 | |
| 52 | PIPEAIRVENT | 2 | |
| 53 | CAPBLIND | 2 | |
| 55 | SCREWPAN HEAD (98502-04006) | 2 | |
| 56 | SCREWADJUST | 1 |
